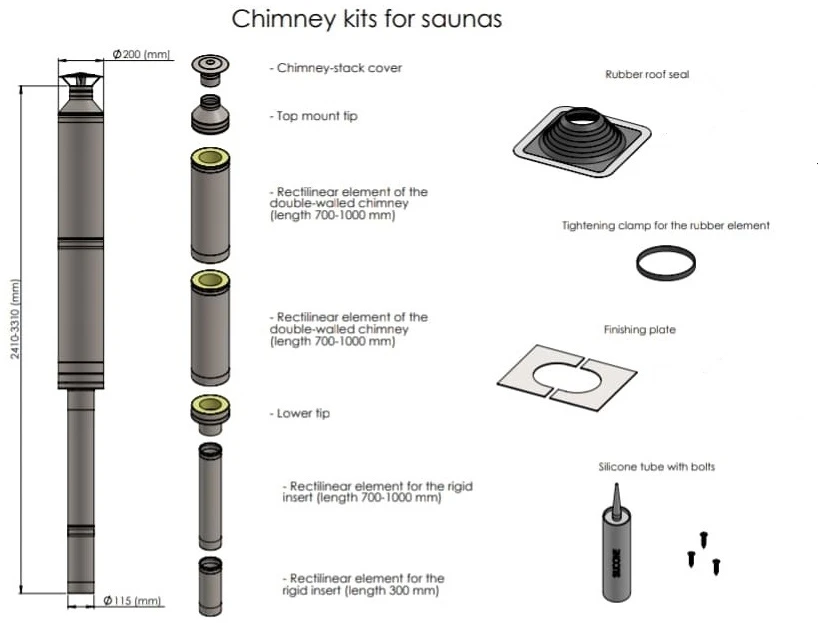

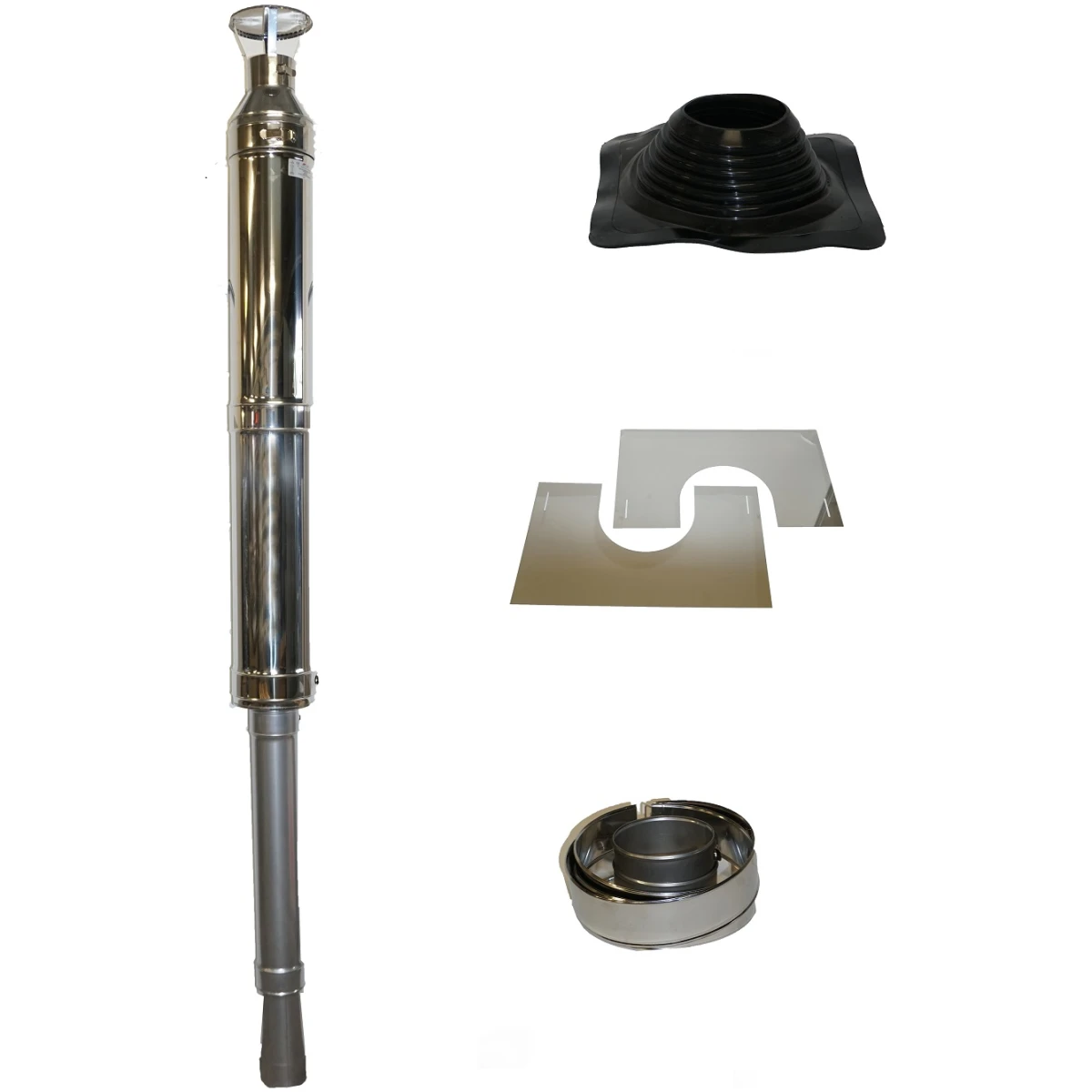

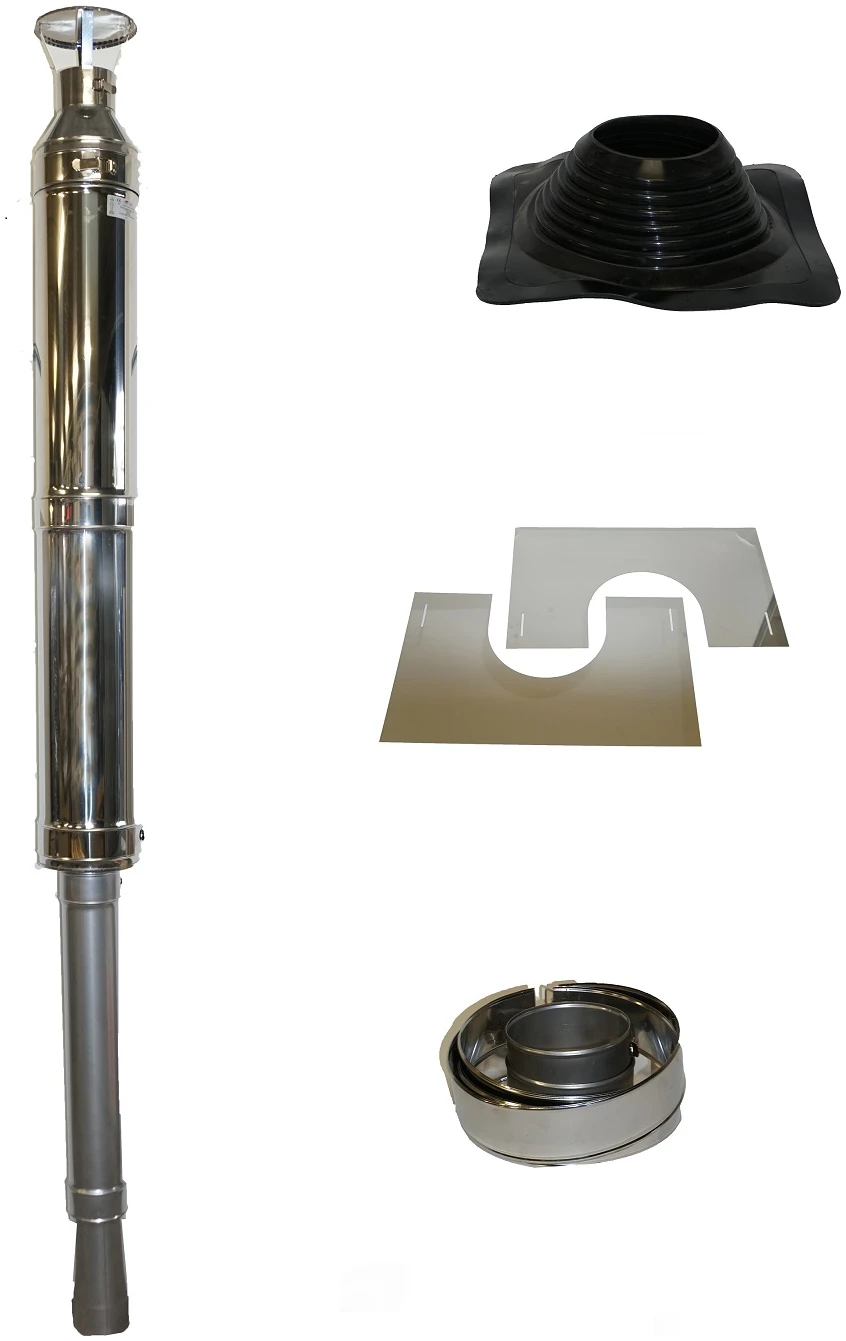

Modular chimney
ARK-115

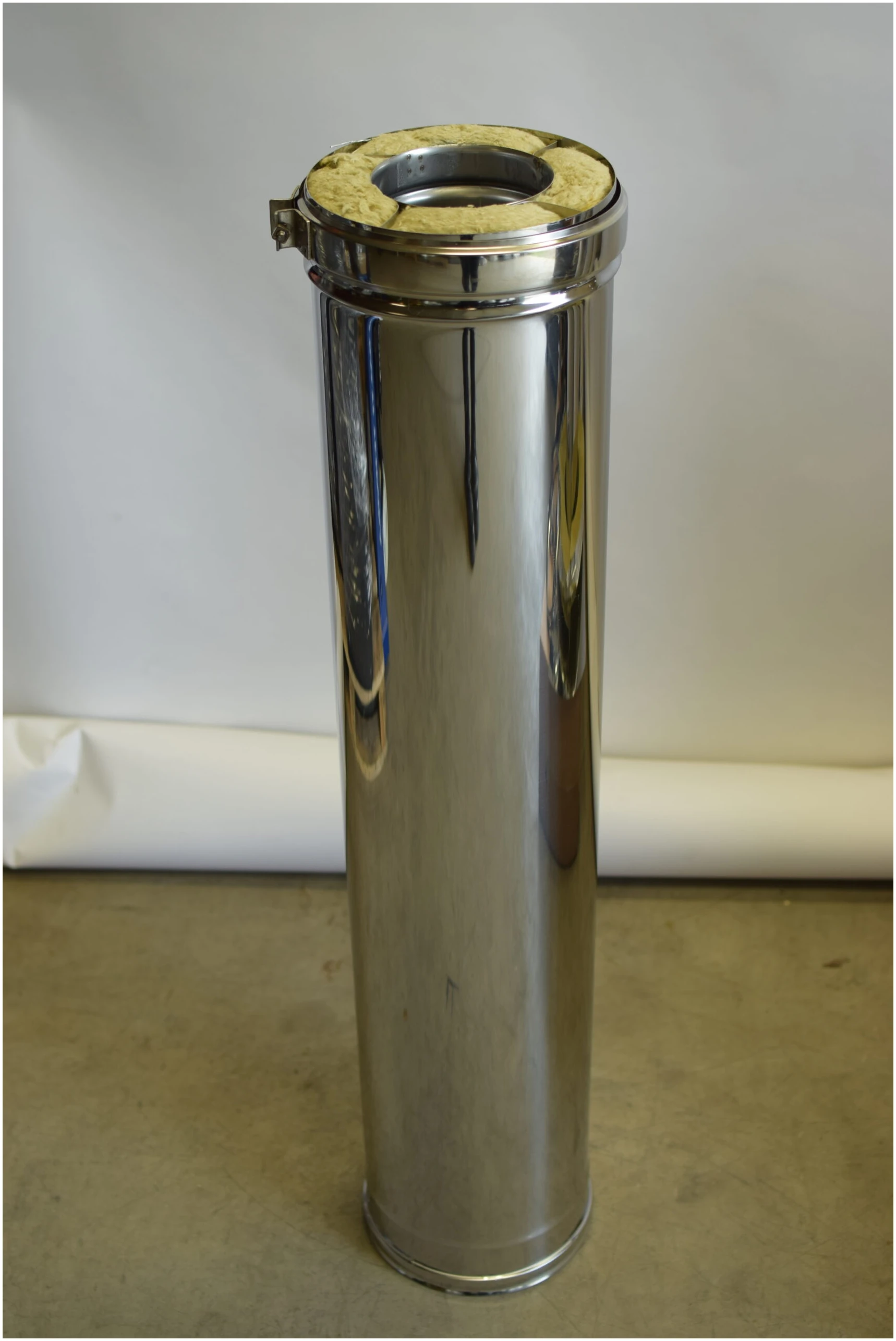

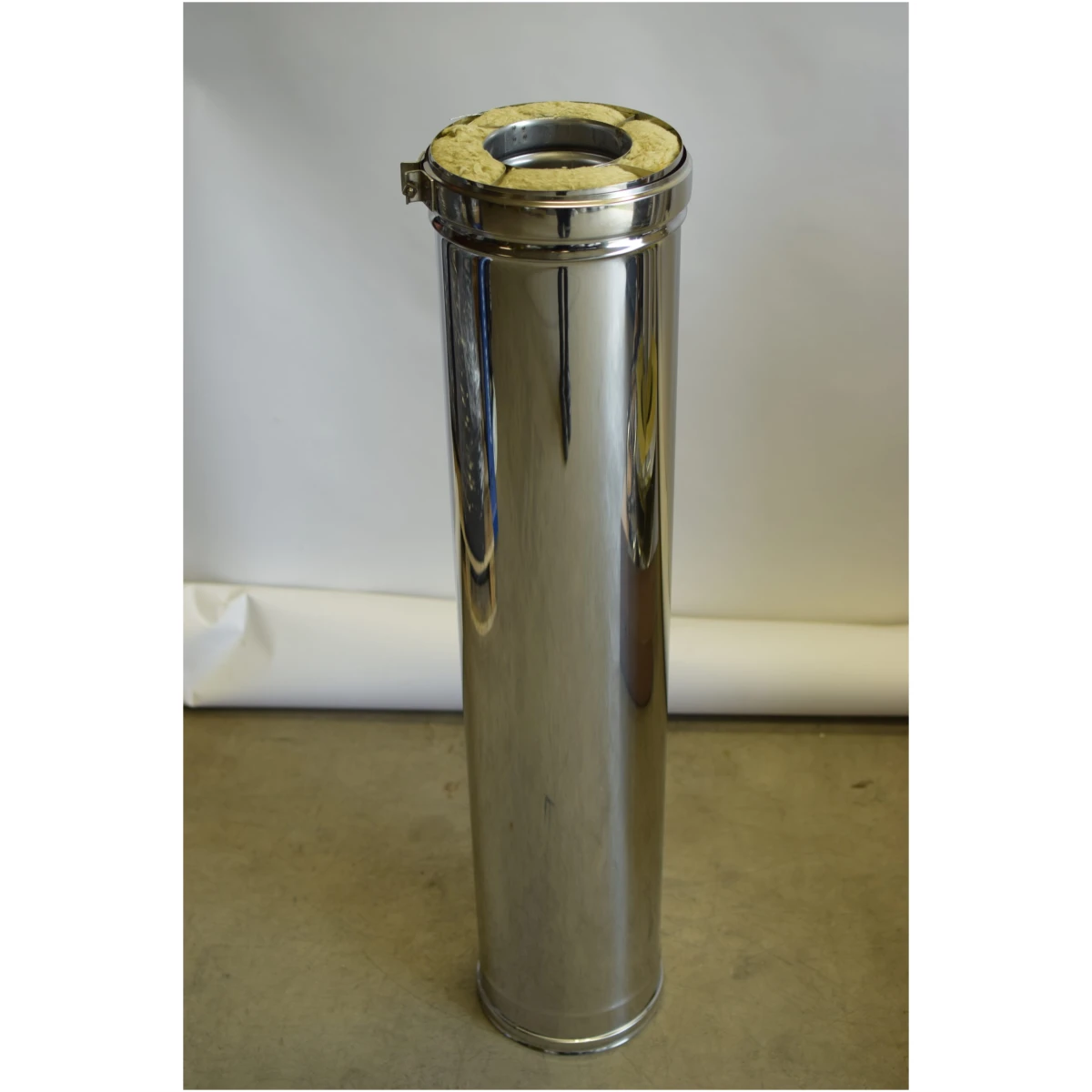

Stainless metal chimney with rubber rubber grommet for both straight roofs and pitched roofs.
Product parameters:

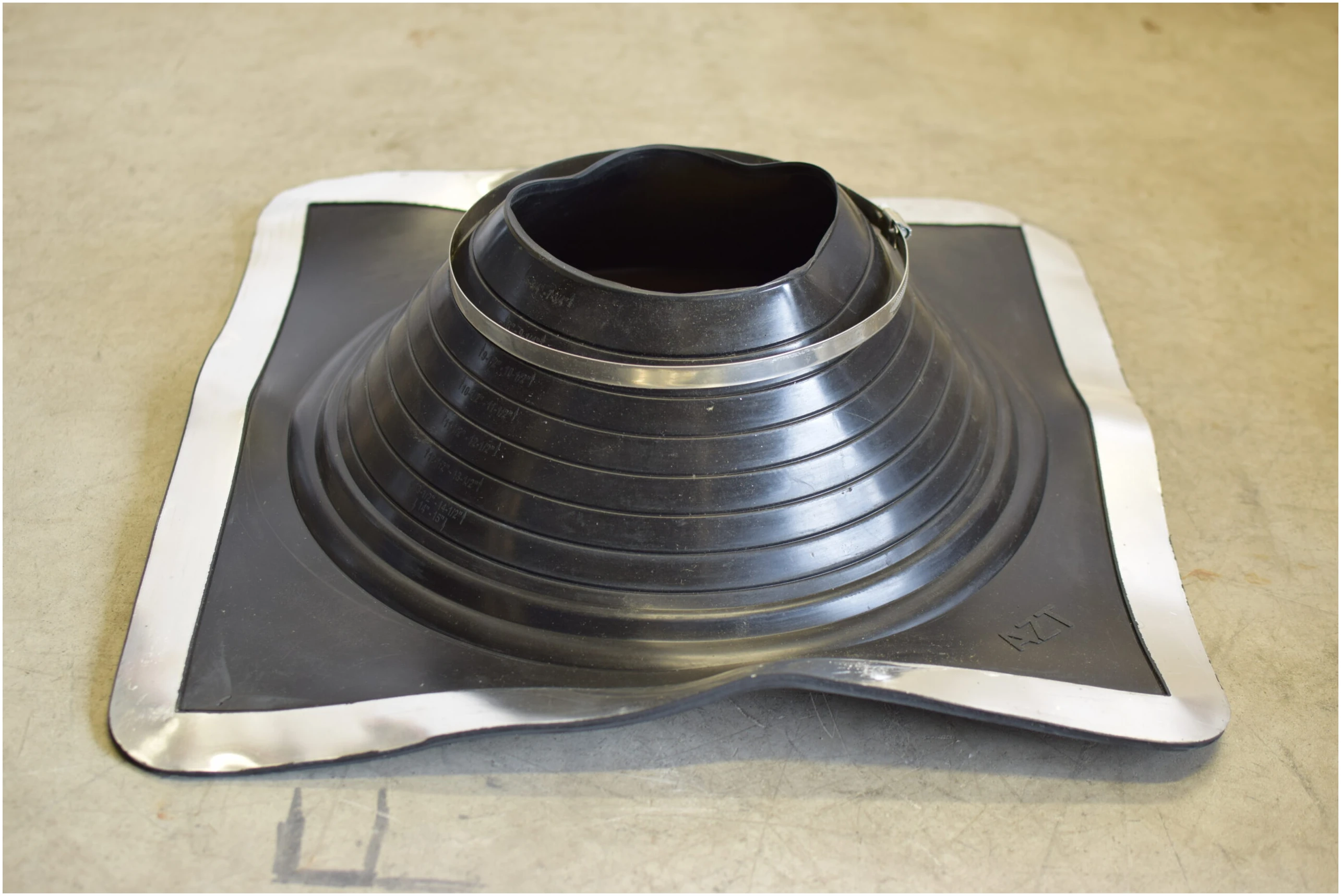

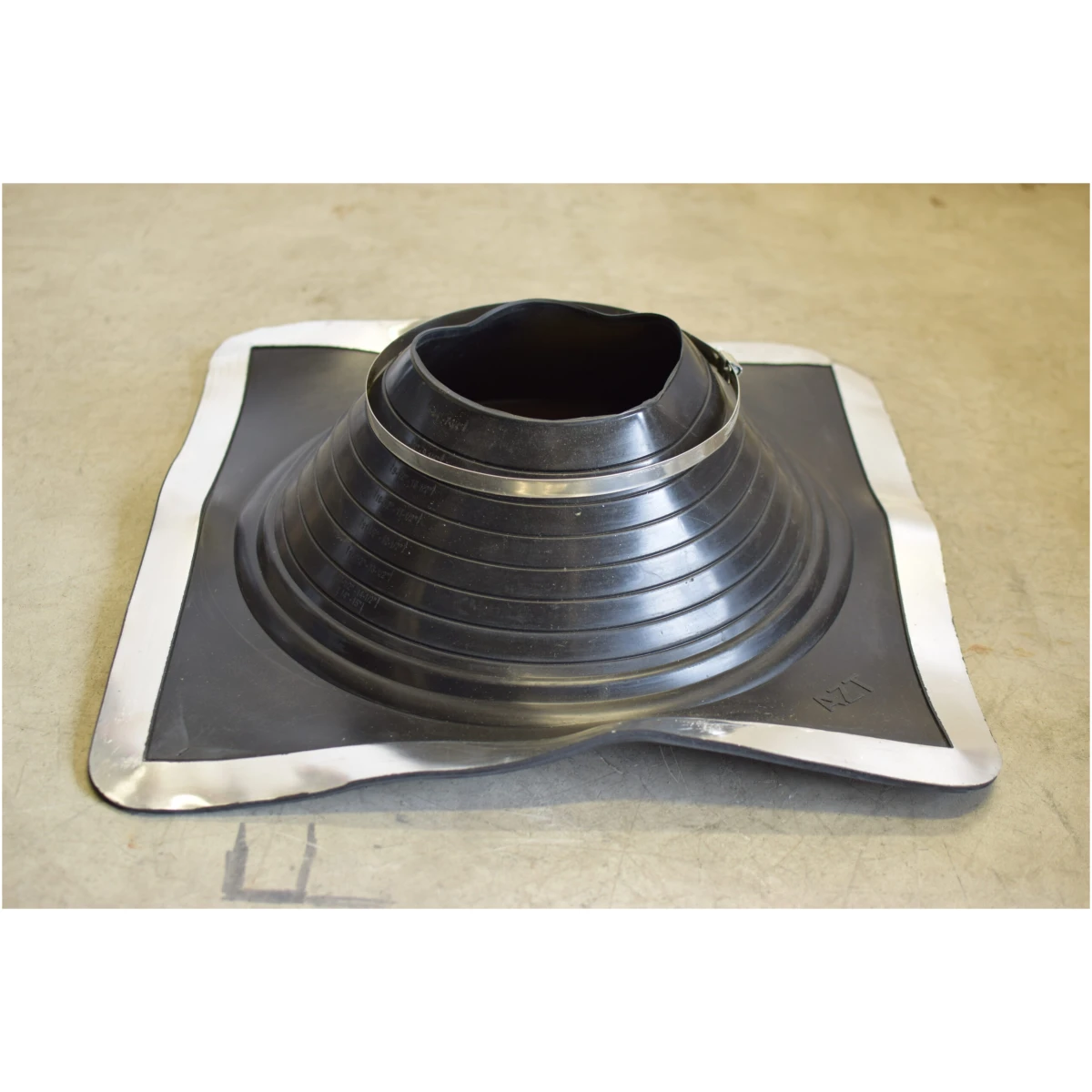

- Rubber bushing for straight and sloping roofs (up to 12 degrees);
- The maximum nominal chimney gas temperature at the oven joint is 600 ºC;

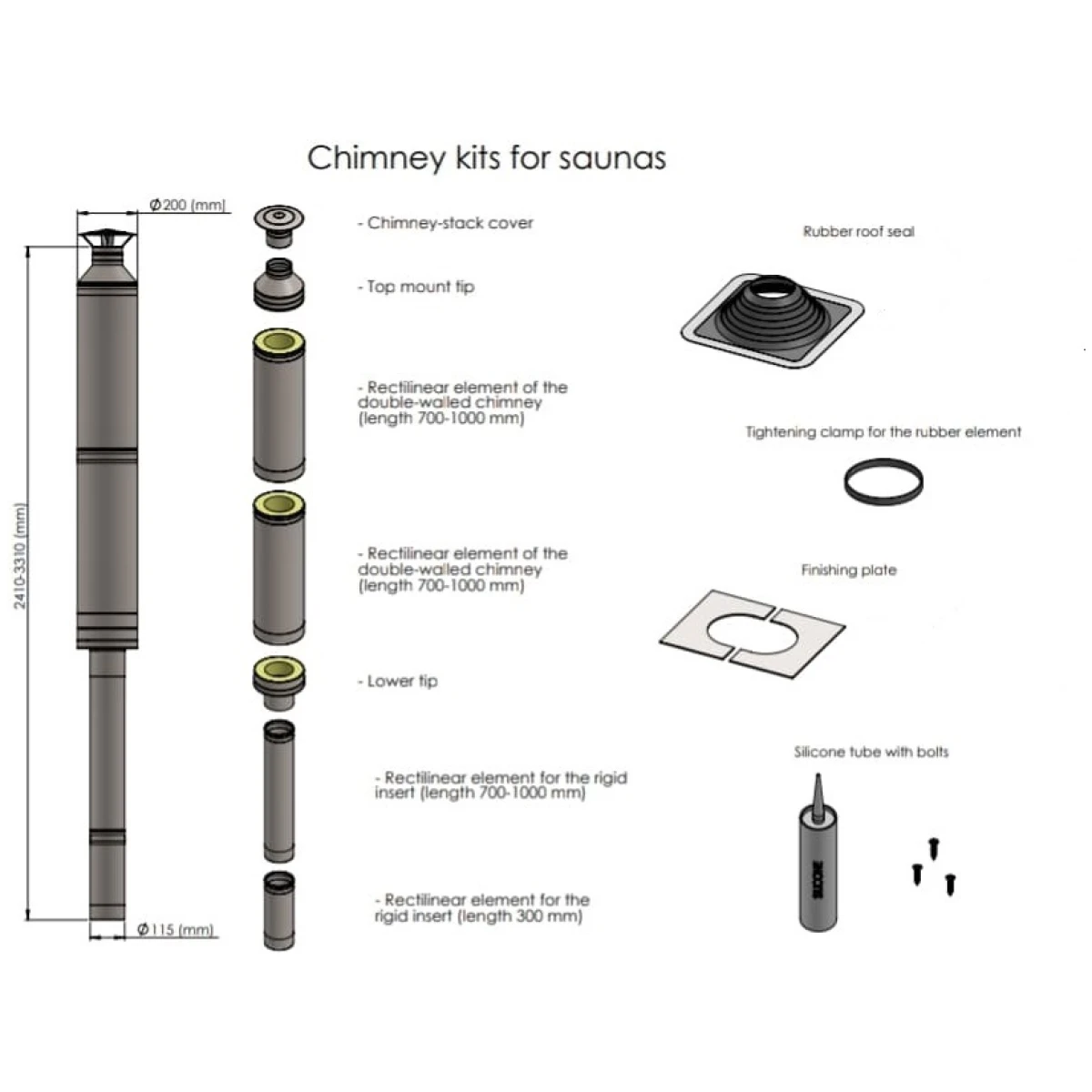

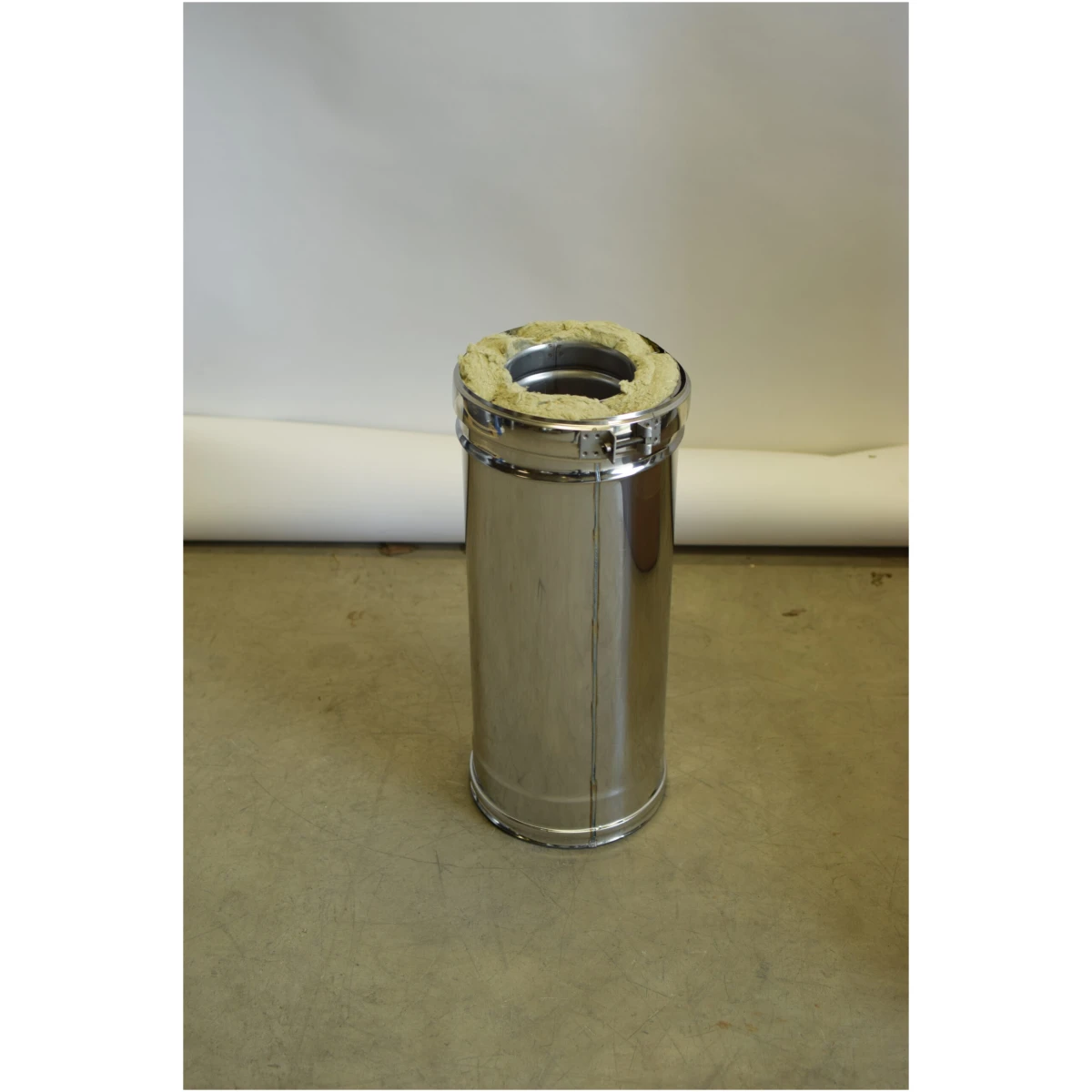

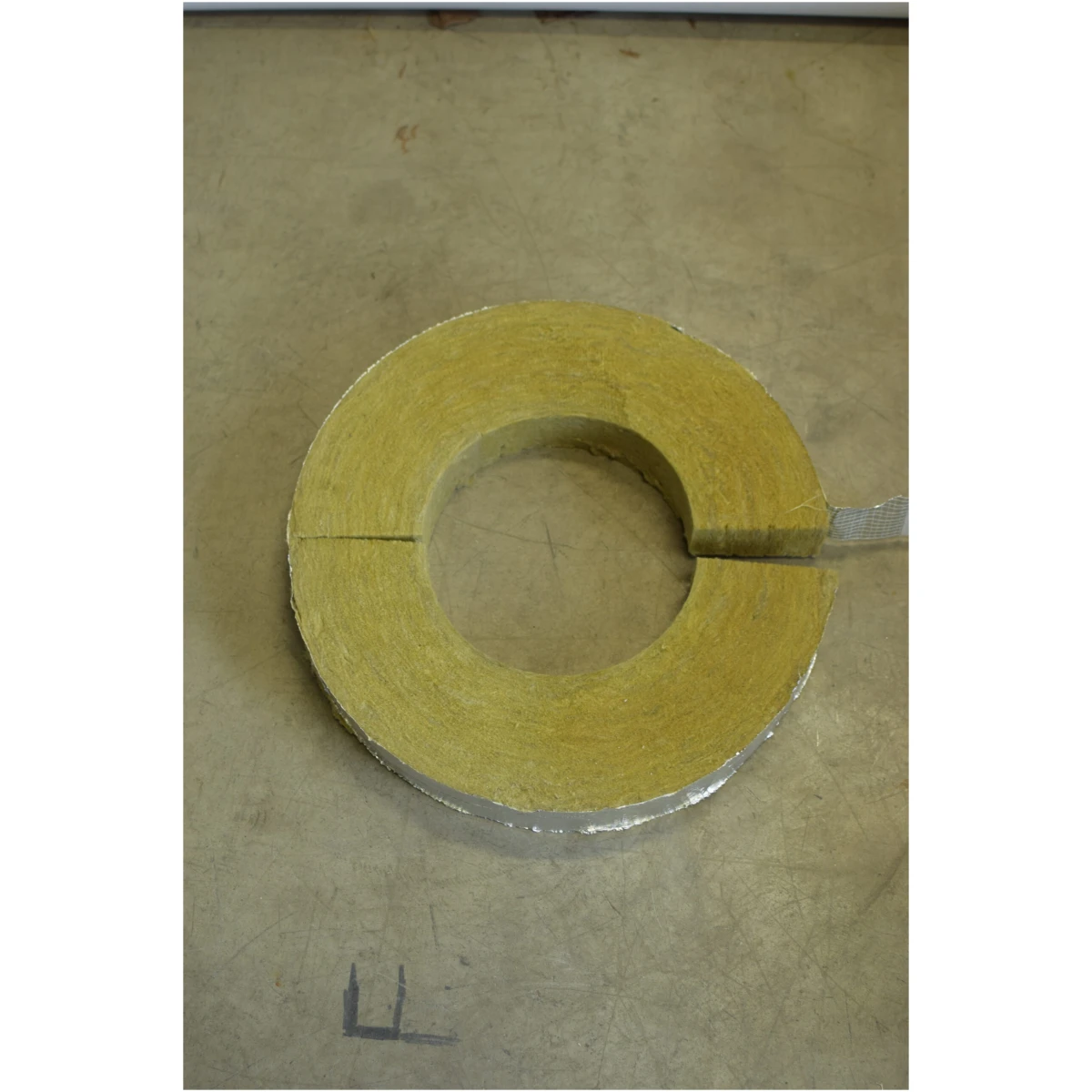

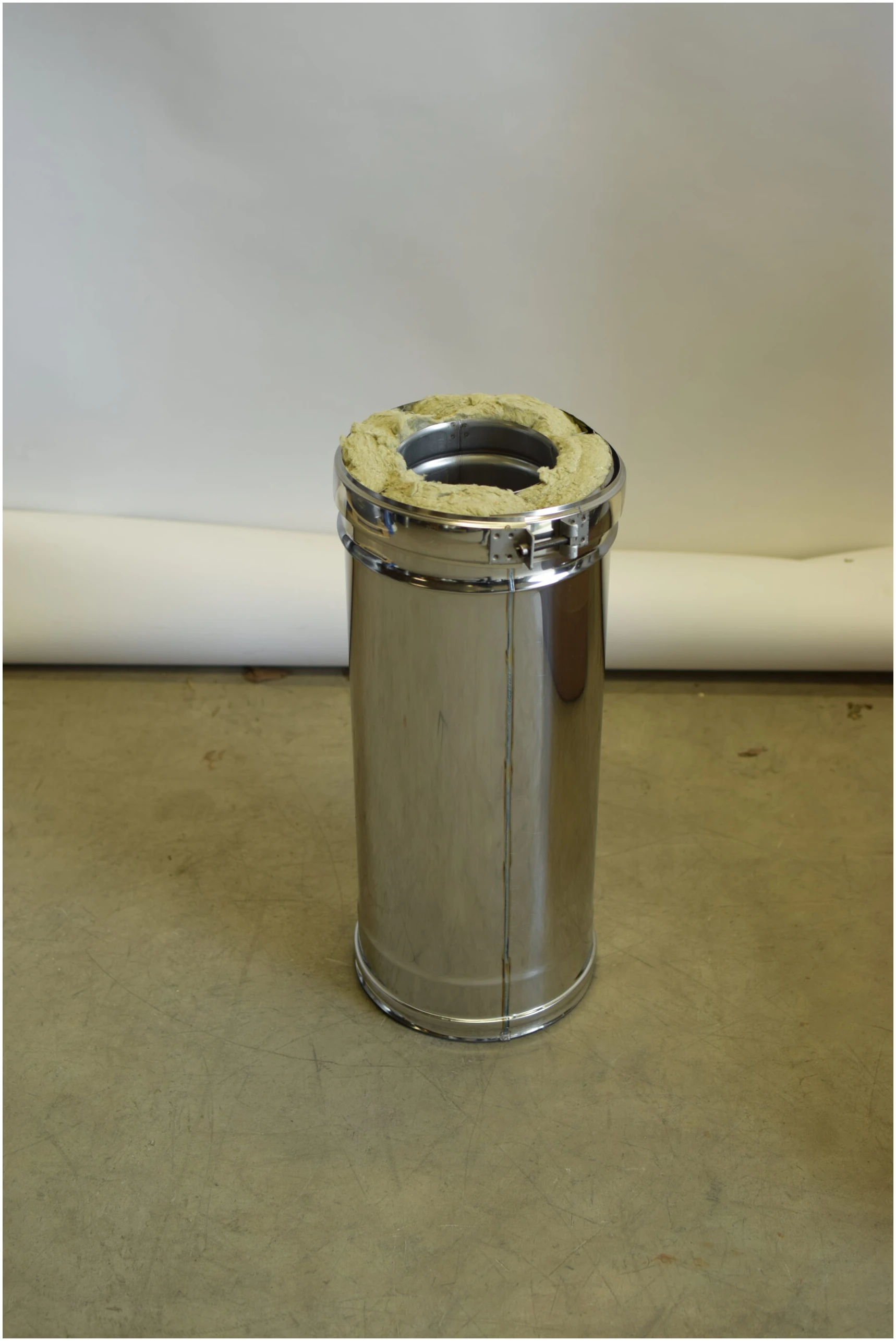

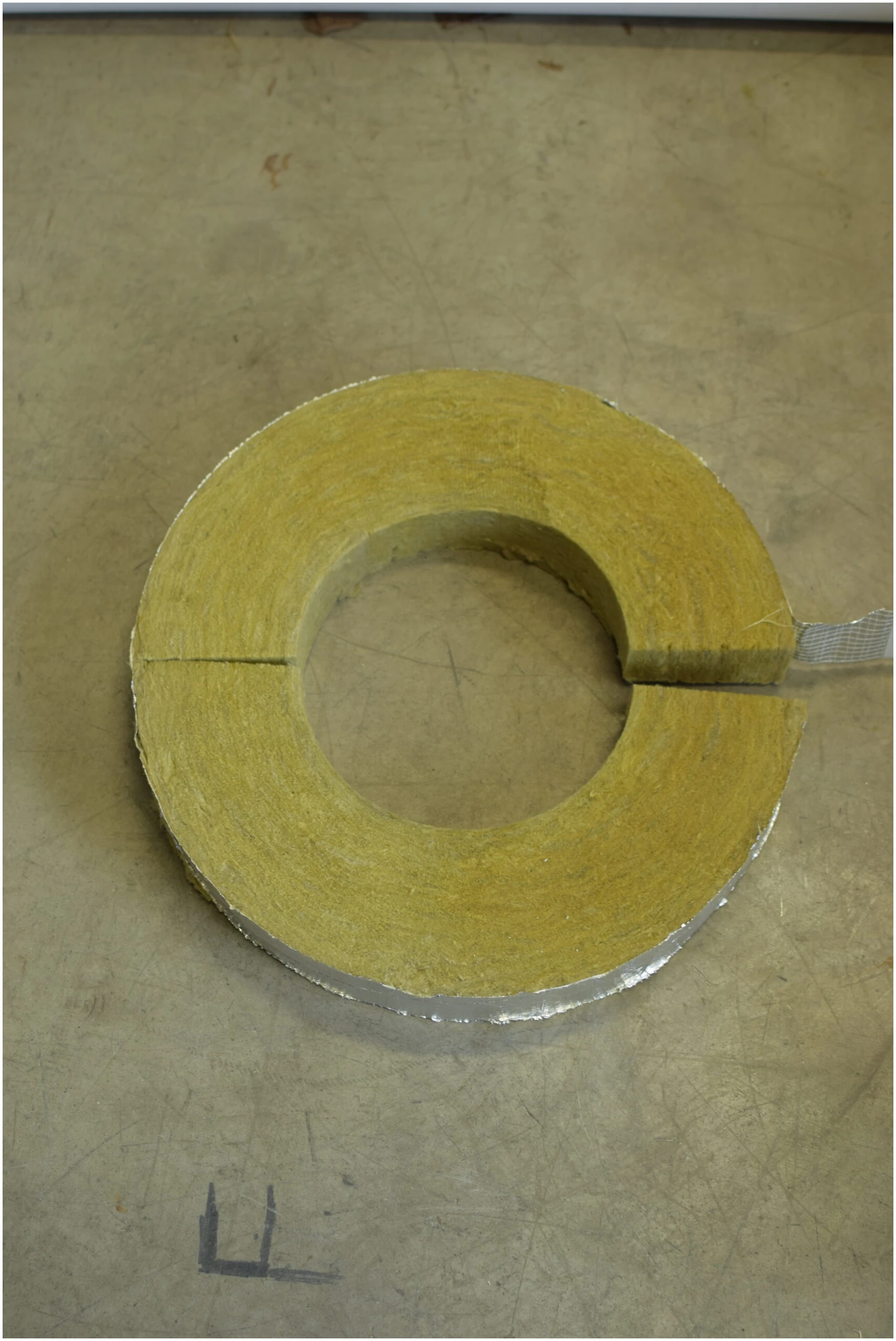

- The cross-section of the chimney is round and its diameter (outer diameter) is 200 mm (insulation thickness 40 mm);

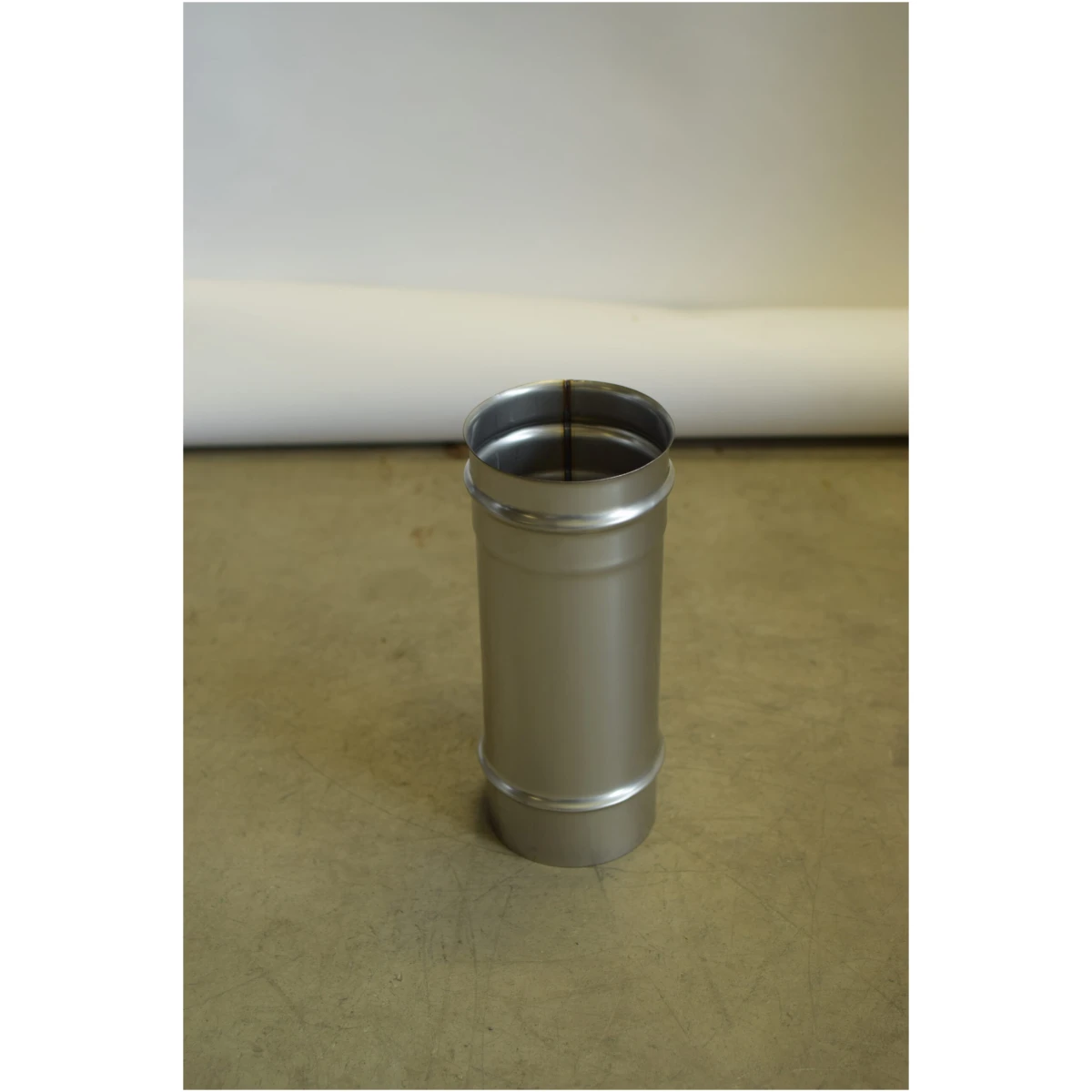

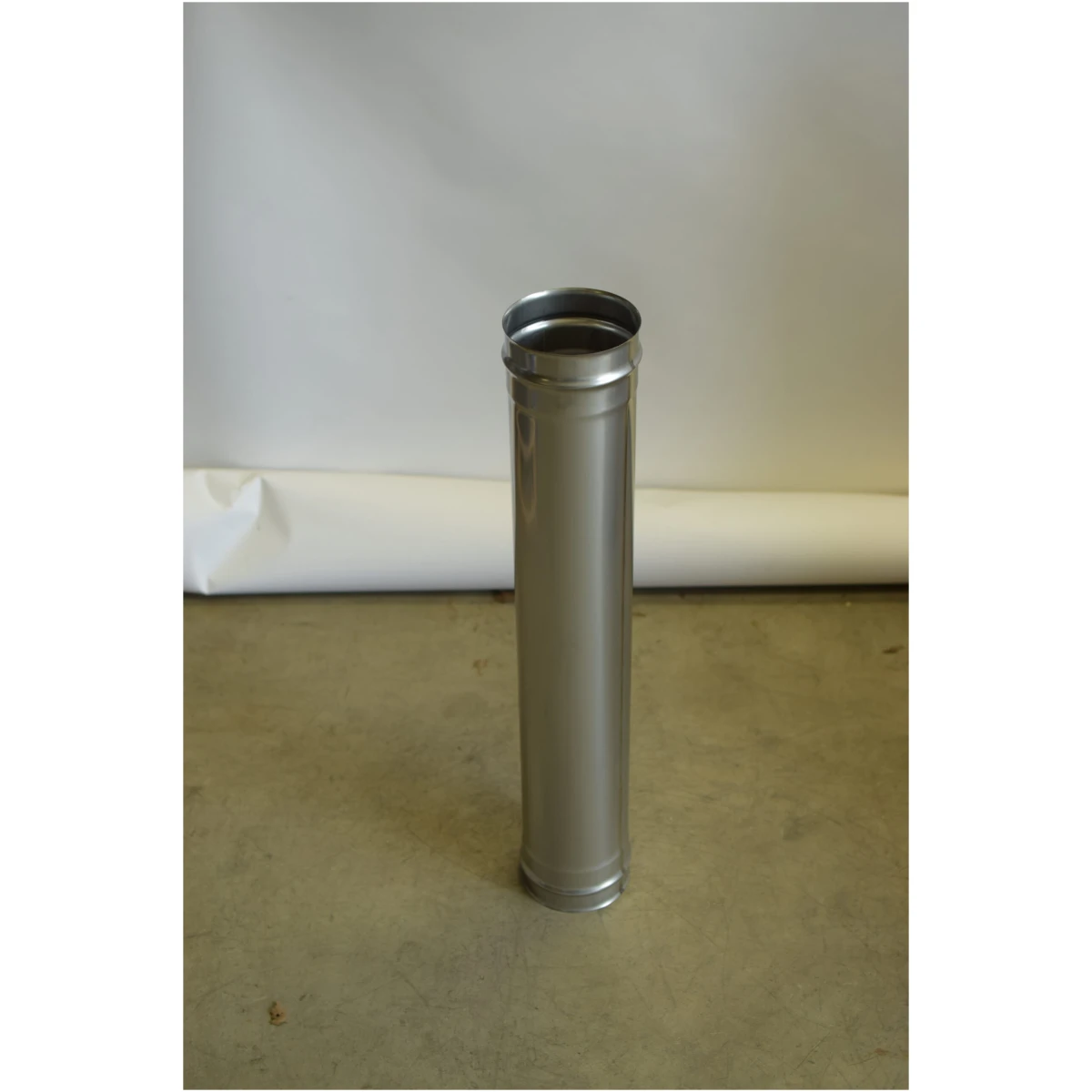

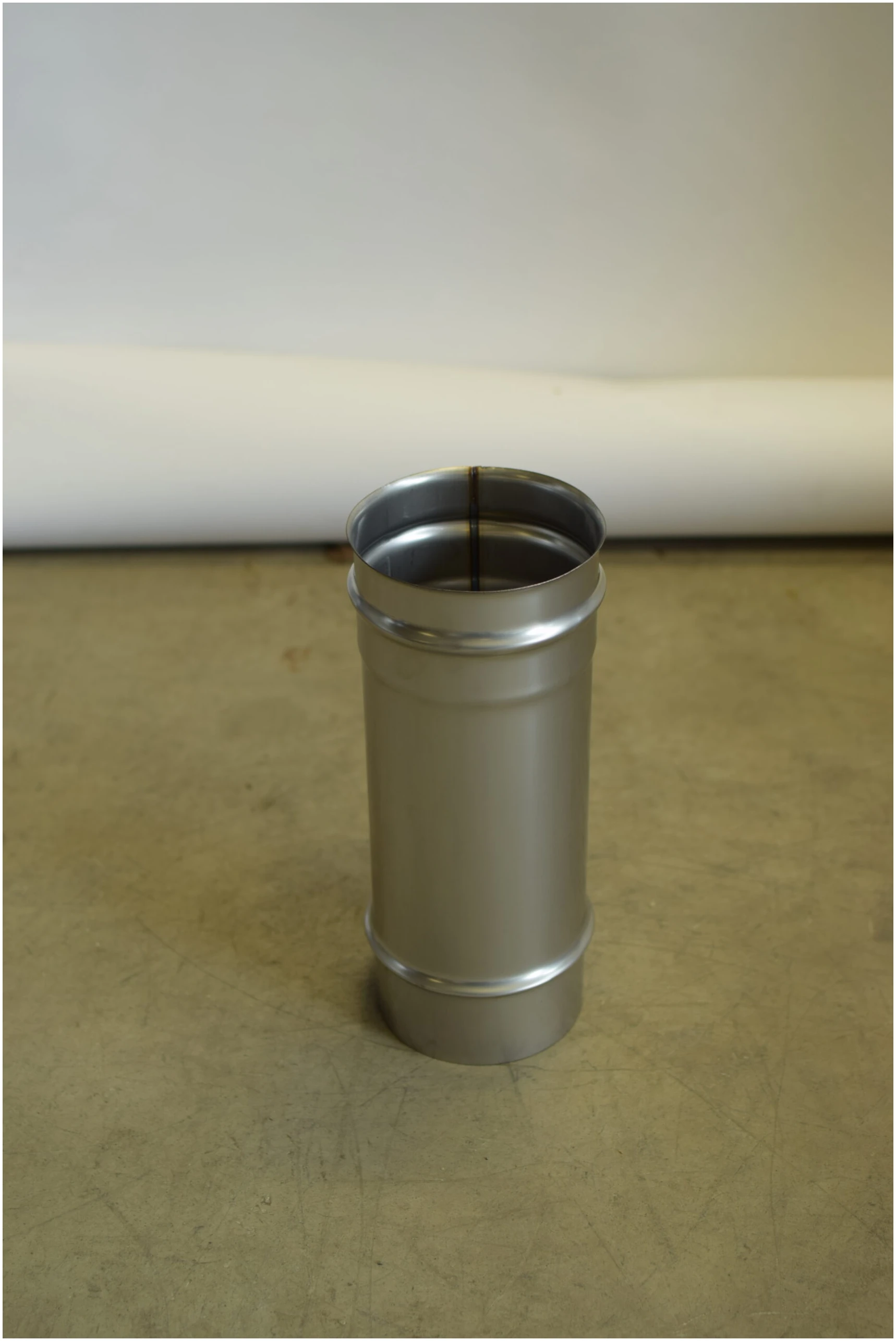

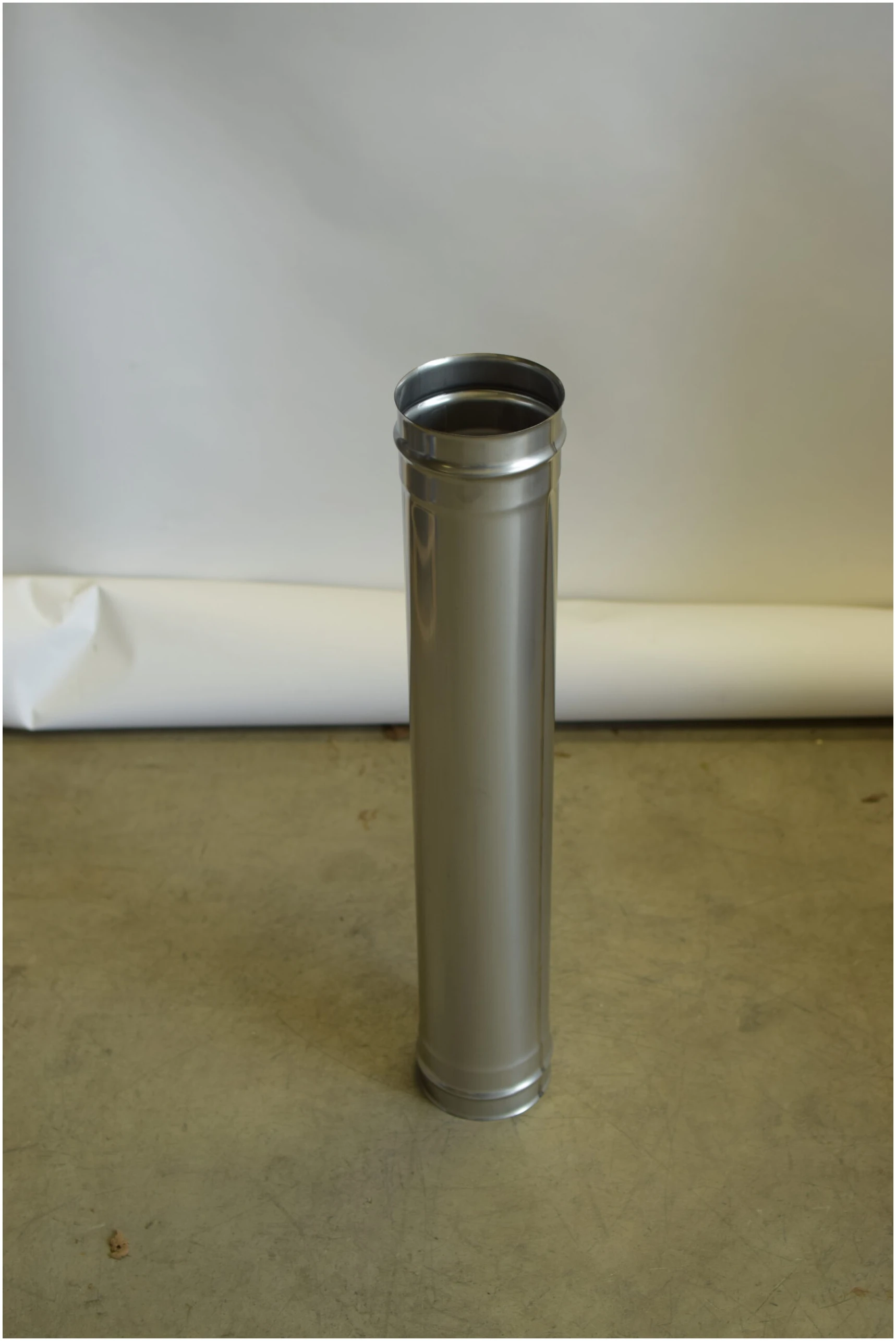

- The flue has a diameter of 115 mm and is made of 0.6 mm stainless steel;
- The chimney has the CE mark, ie it meets international fire and safety requirements;
- Safe distances from combustible materials: 130mm from the double-walled outer wall;
- If the front of the connecting pipe is made of non-insulated material, the safety distance from this pipe to the building materials must be 500 mm;
- The insulated chimney must be visible to at least 500 mm.
