Smoke pipe elbows

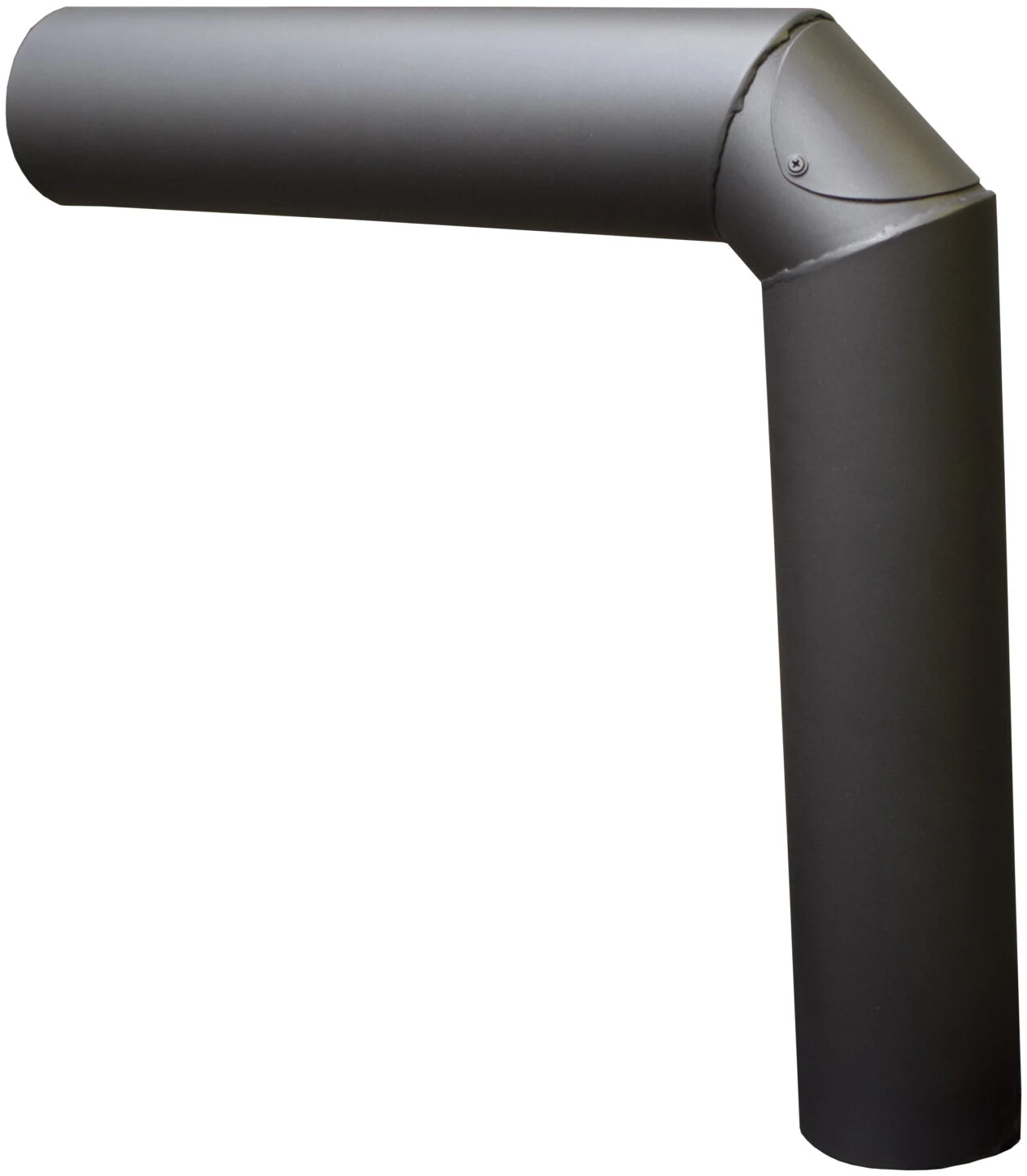

Diameter indicated on smoke pipe elbow is its inner size. Elbows have no collars, i.e. the inner diameter is the same at both ends. Flap or gate valves can be installed inside elbow. In addition, cleanouts can be installed on smoke pipe elbows – fixed with screws. Elbows can be also joined with each other using collars – see below.
All sizes are given in manuals.

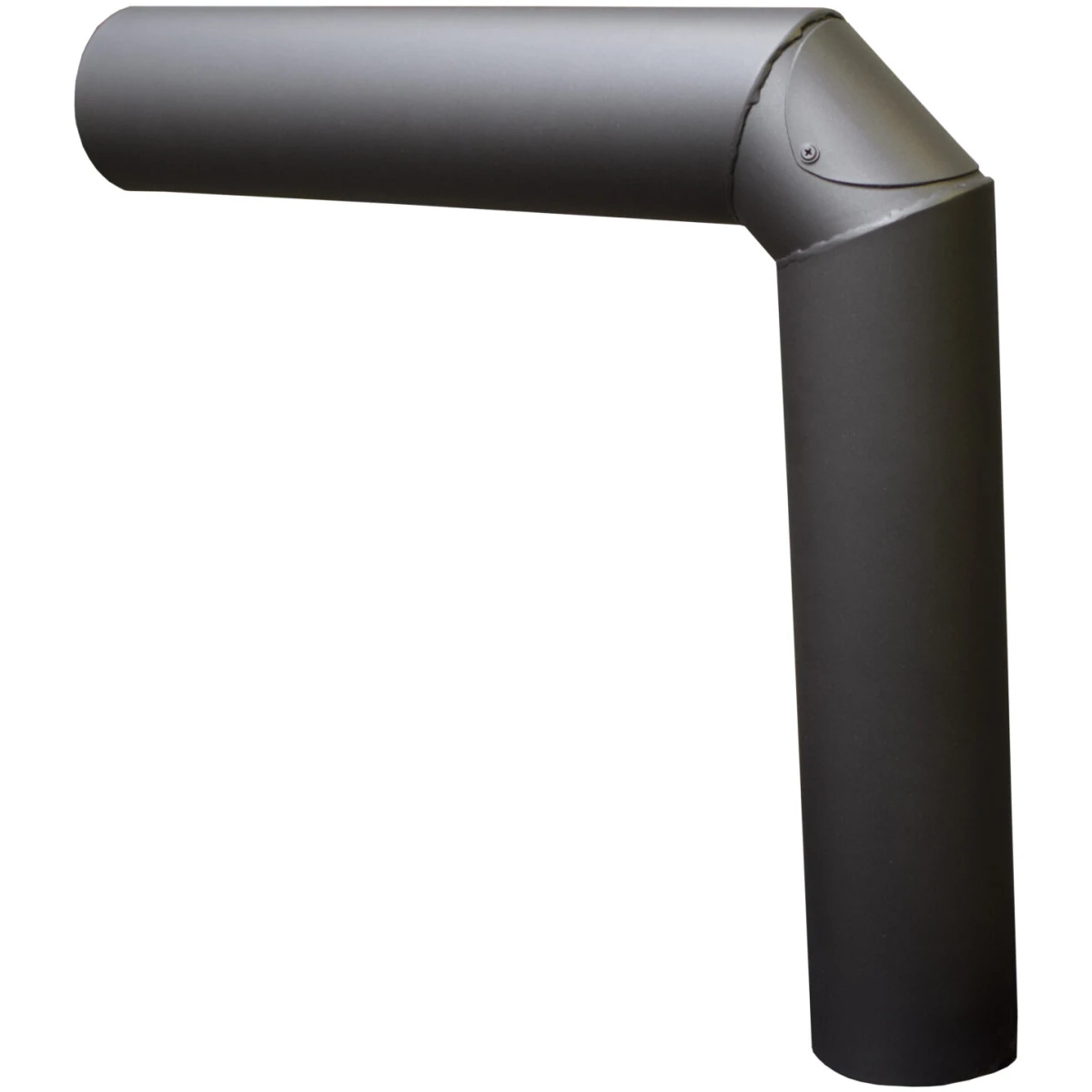

Standard product parameters: Additional оptions:
» diameter 103 – 200 mm;
» material – ferrous metal;

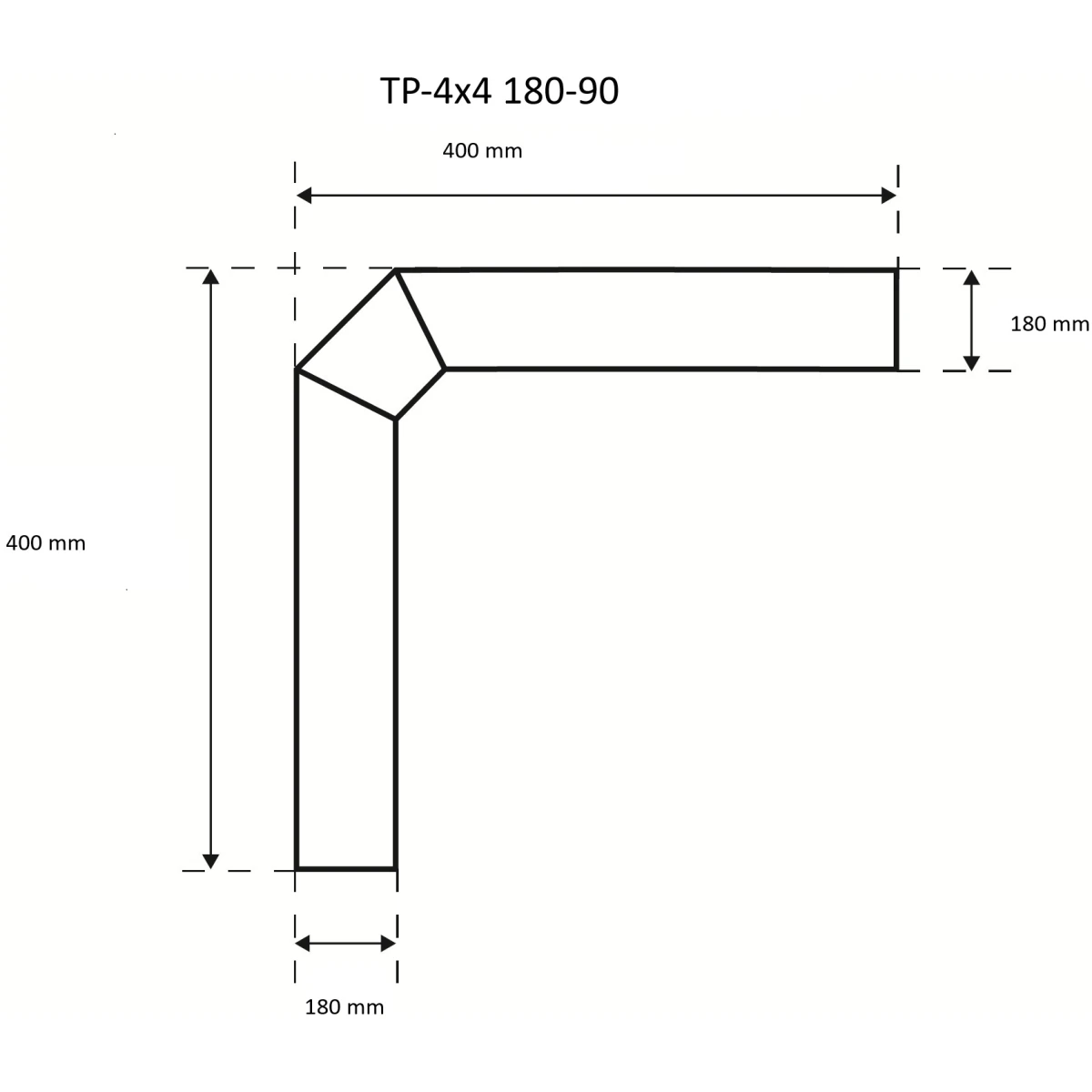

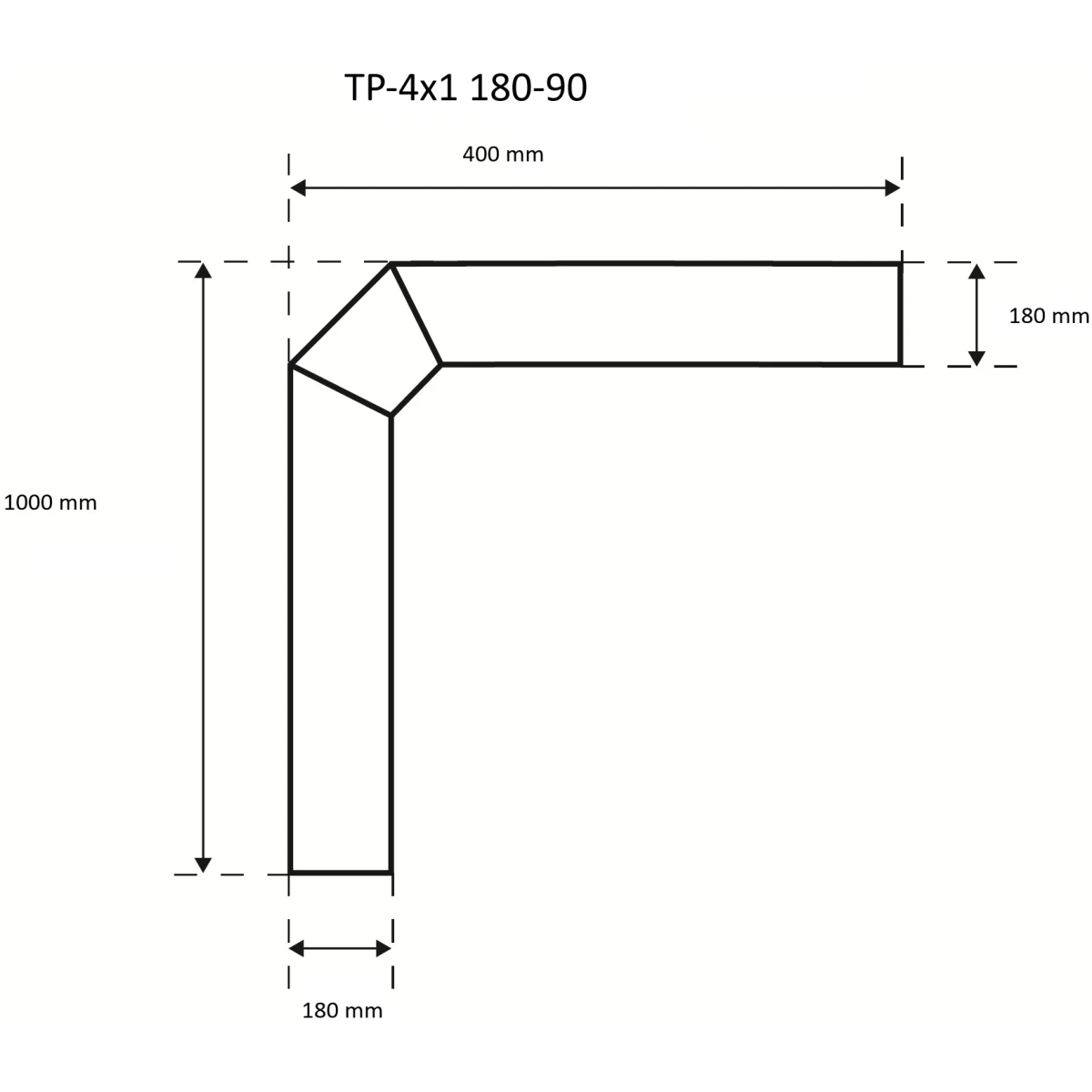

» length is measured from elbow exit (from 300 mm to 1000 mm);
» angle of elbow 90˚ and 135˚ degrees;
» 1.2 mm thick » different diameters;
» stainless steel;
» we can also produce longer or shorter elbows;
» bend angles can be changed;
» pipes can be also produced from thicker metal.

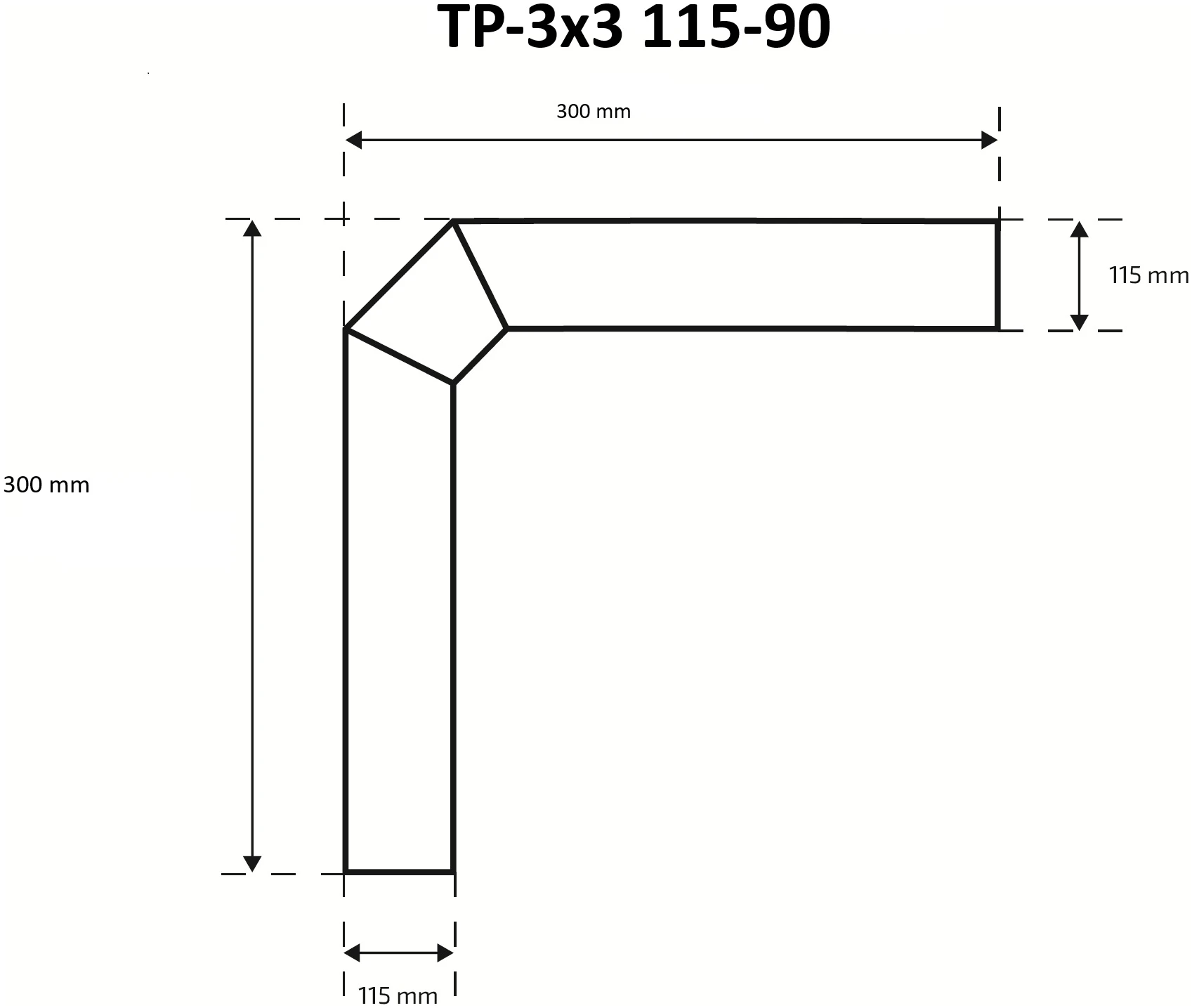

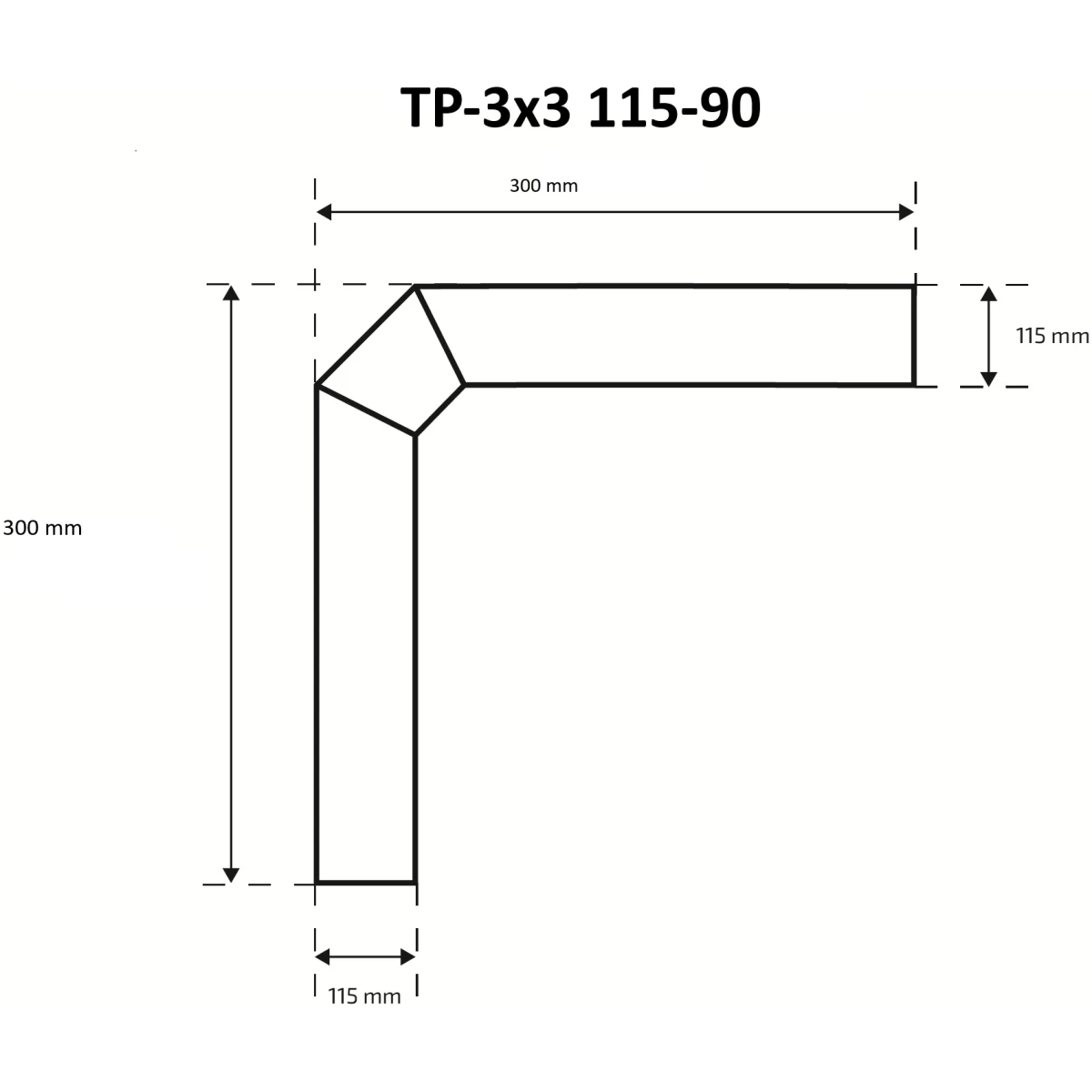

TP-3x3 115-90	Ø 115 mm 300 x 300 mm – 90 kraadi

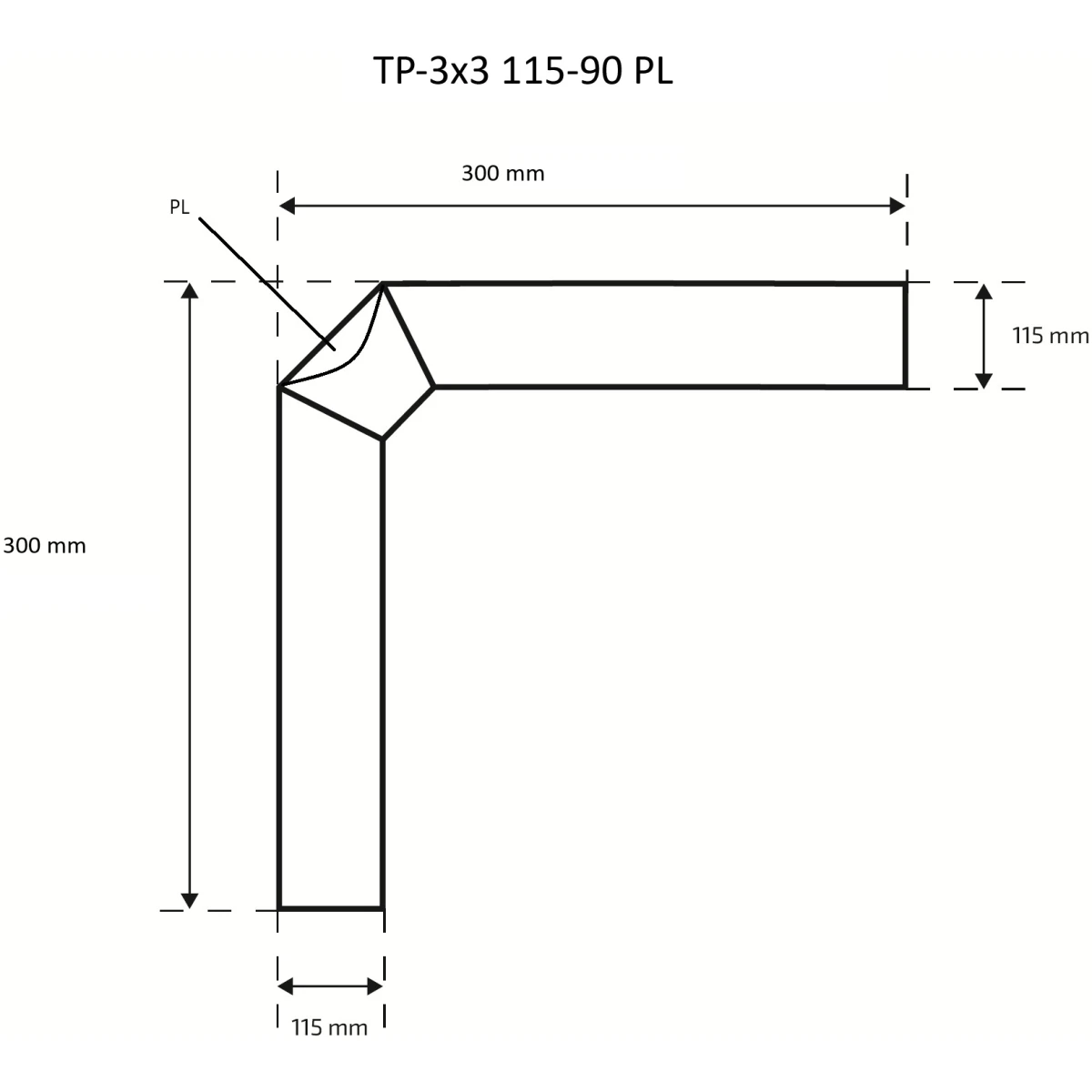

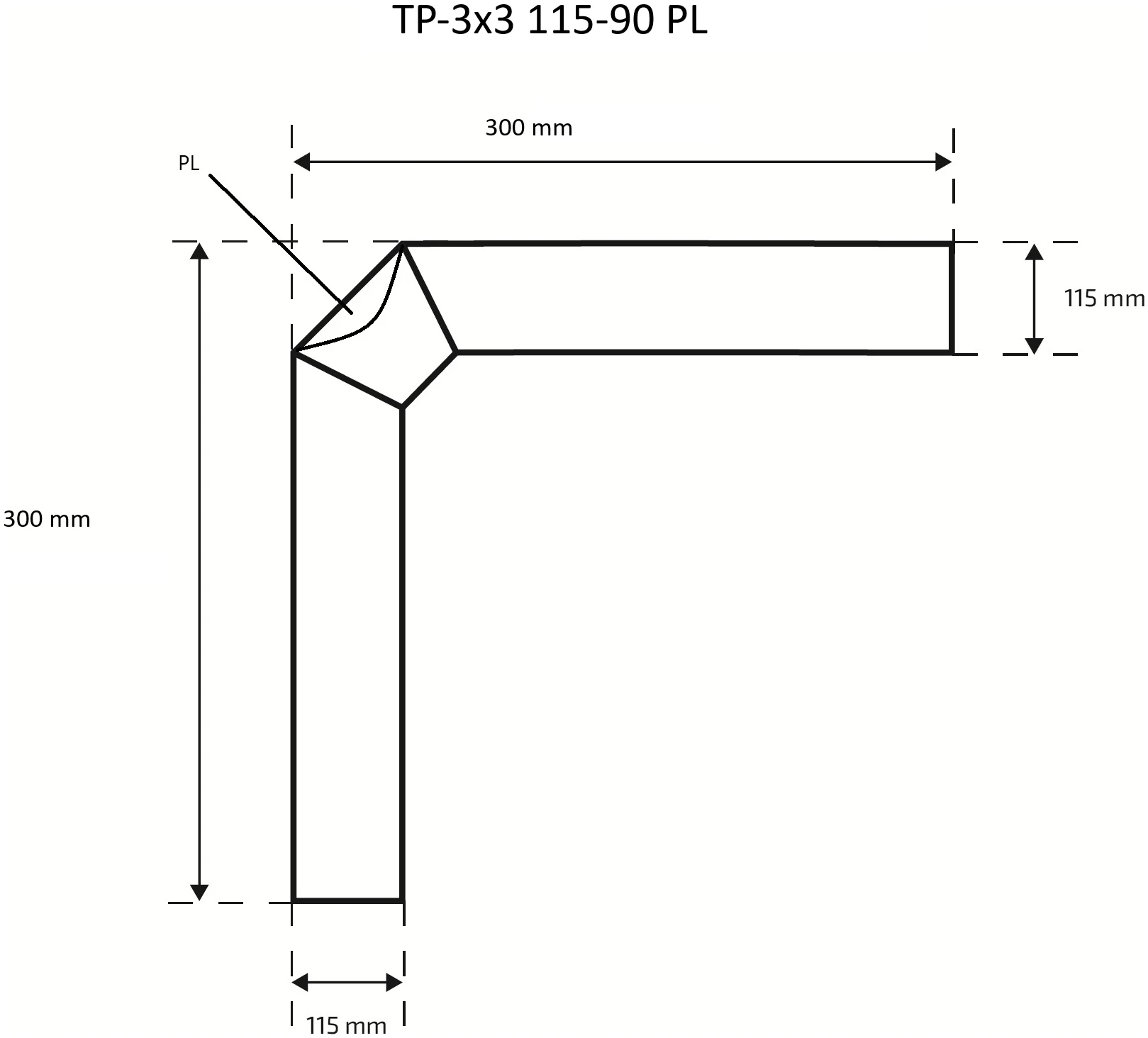

TP-3x3 115-90 PL	Ø 115 mm 300 x 300 mm – 90 kraadi, puhastusluugiga

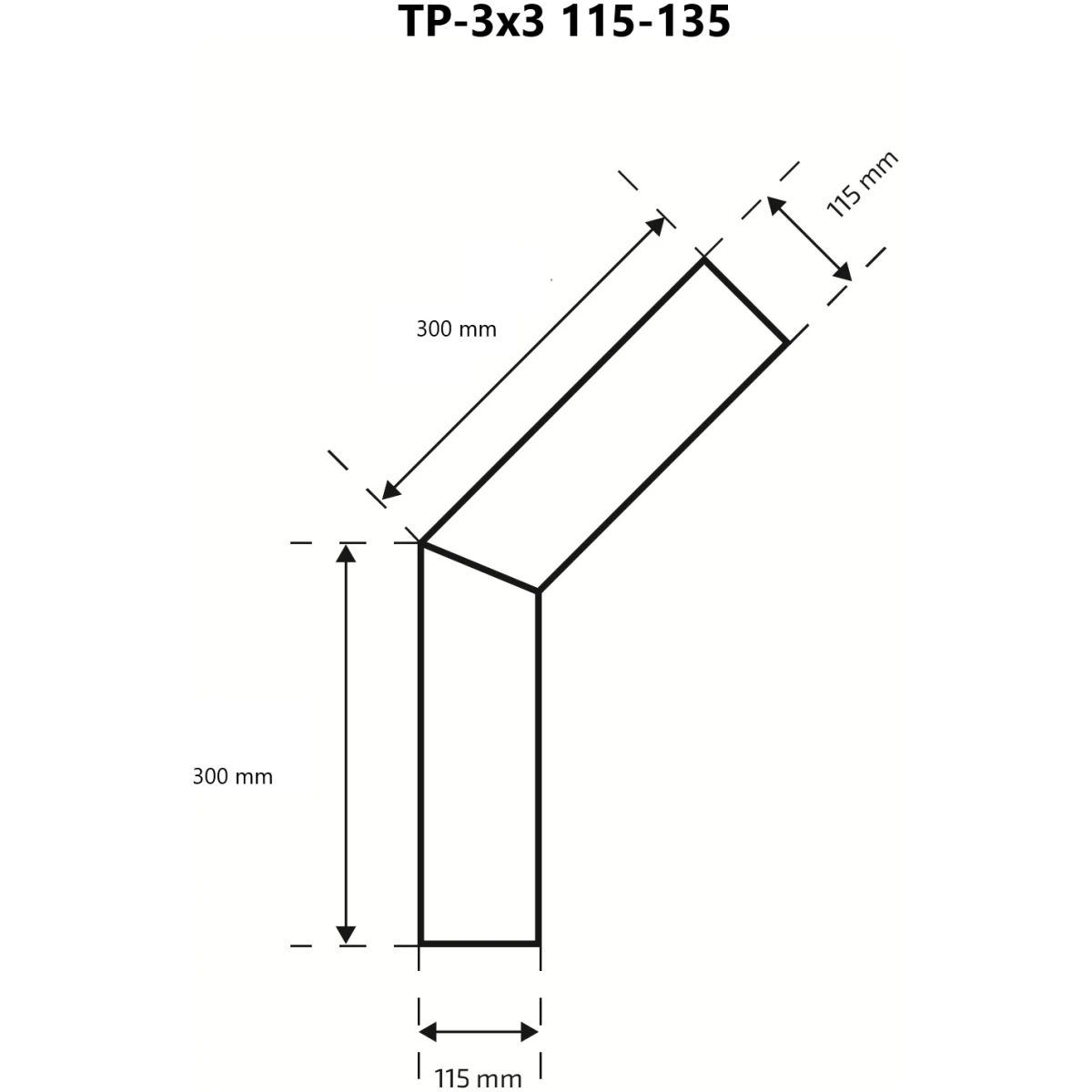

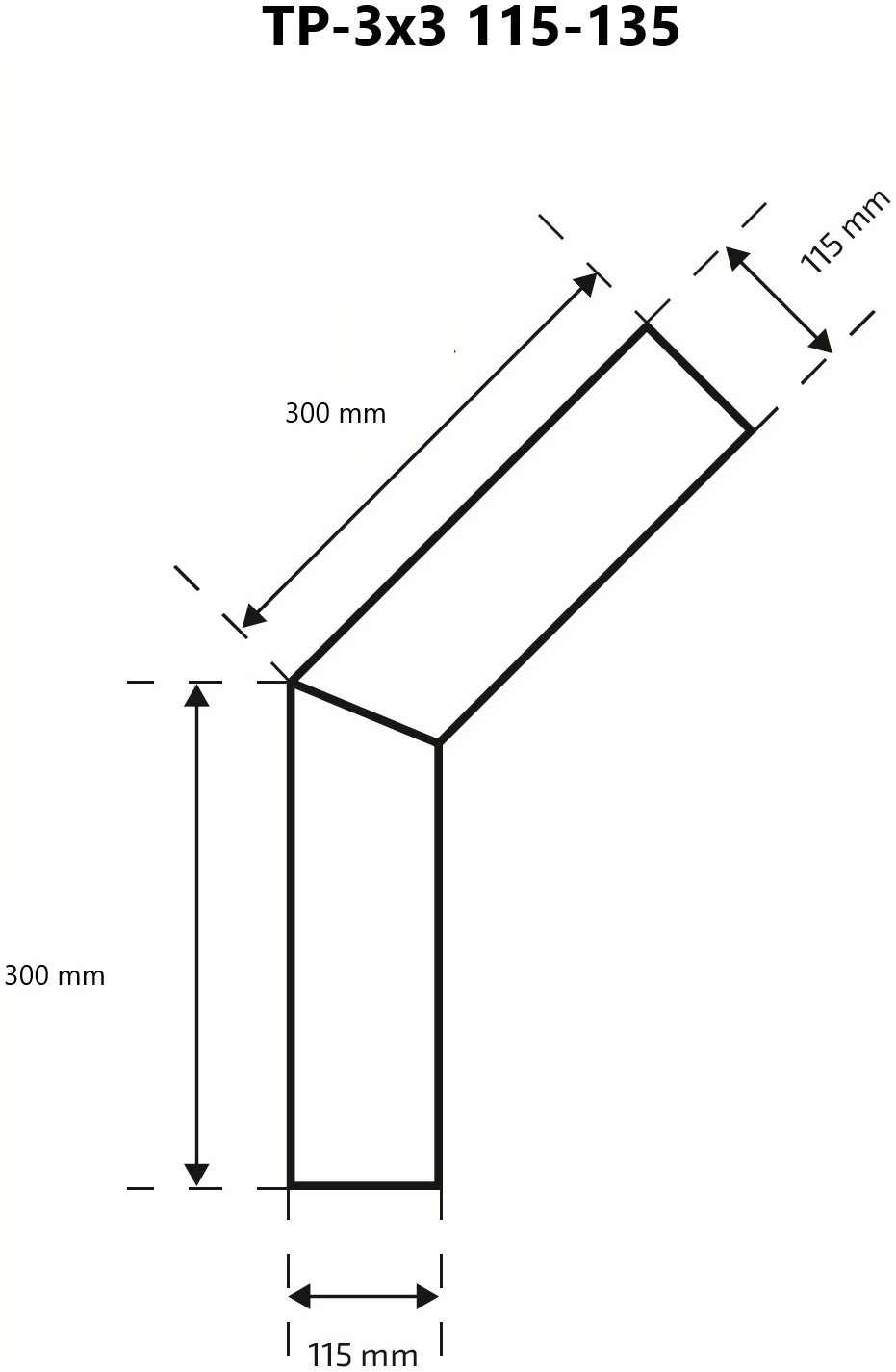

TP-3x3 115-135	Ø 115 mm 300 x 300 mm – 135 kraadi

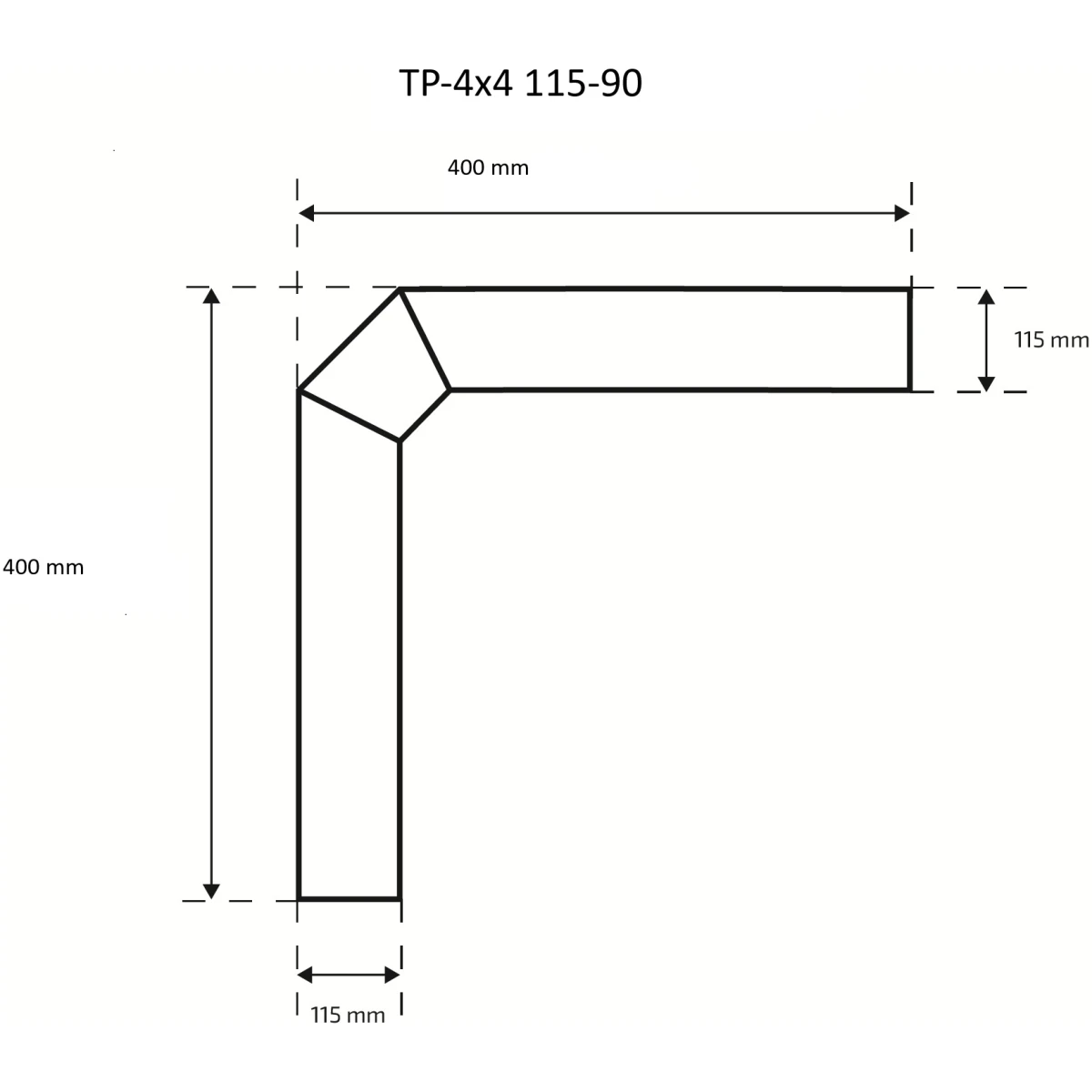

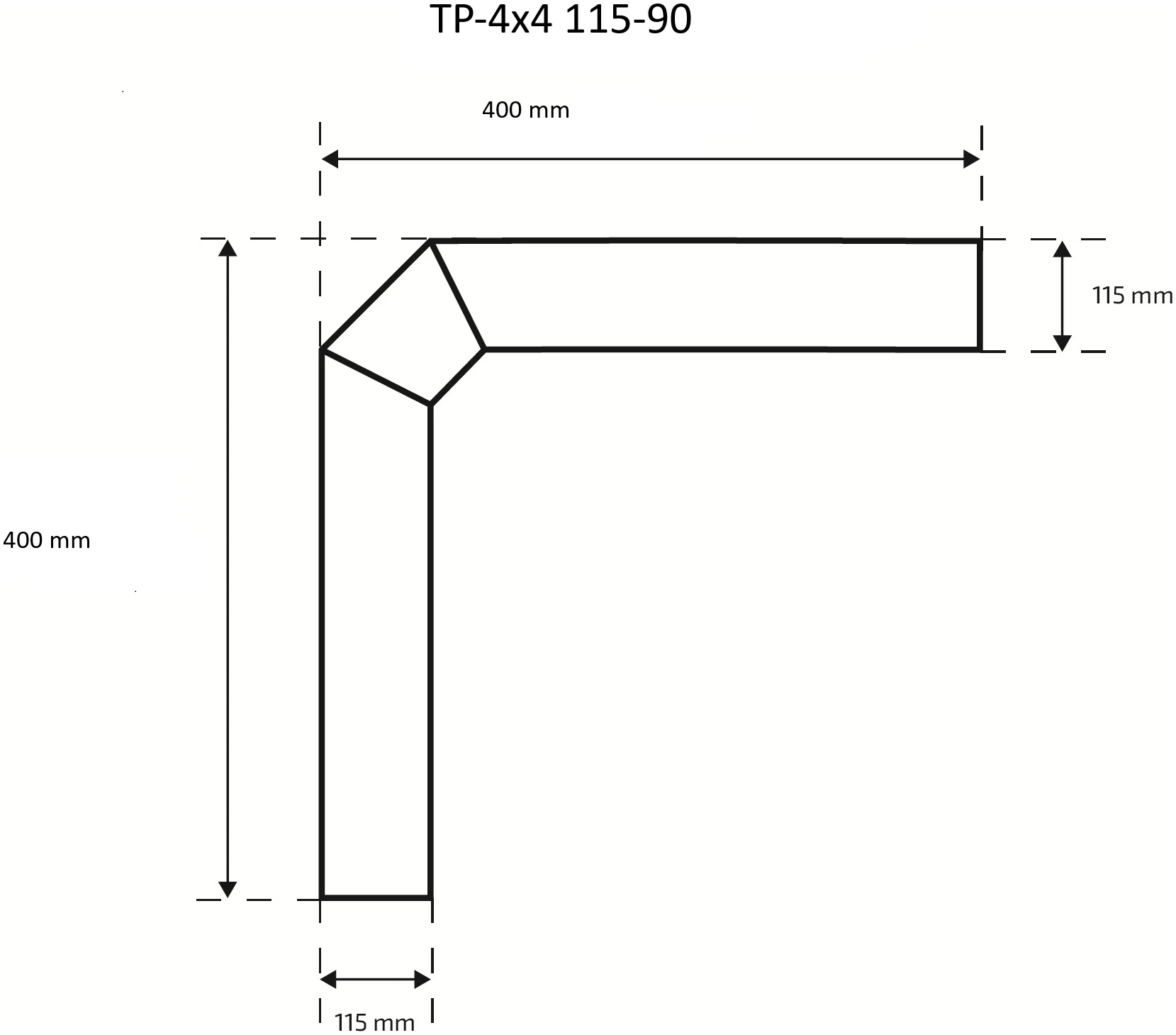

TP-4x4 115-90	Ø 115 mm 400 x 400 mm – 90 kraadi

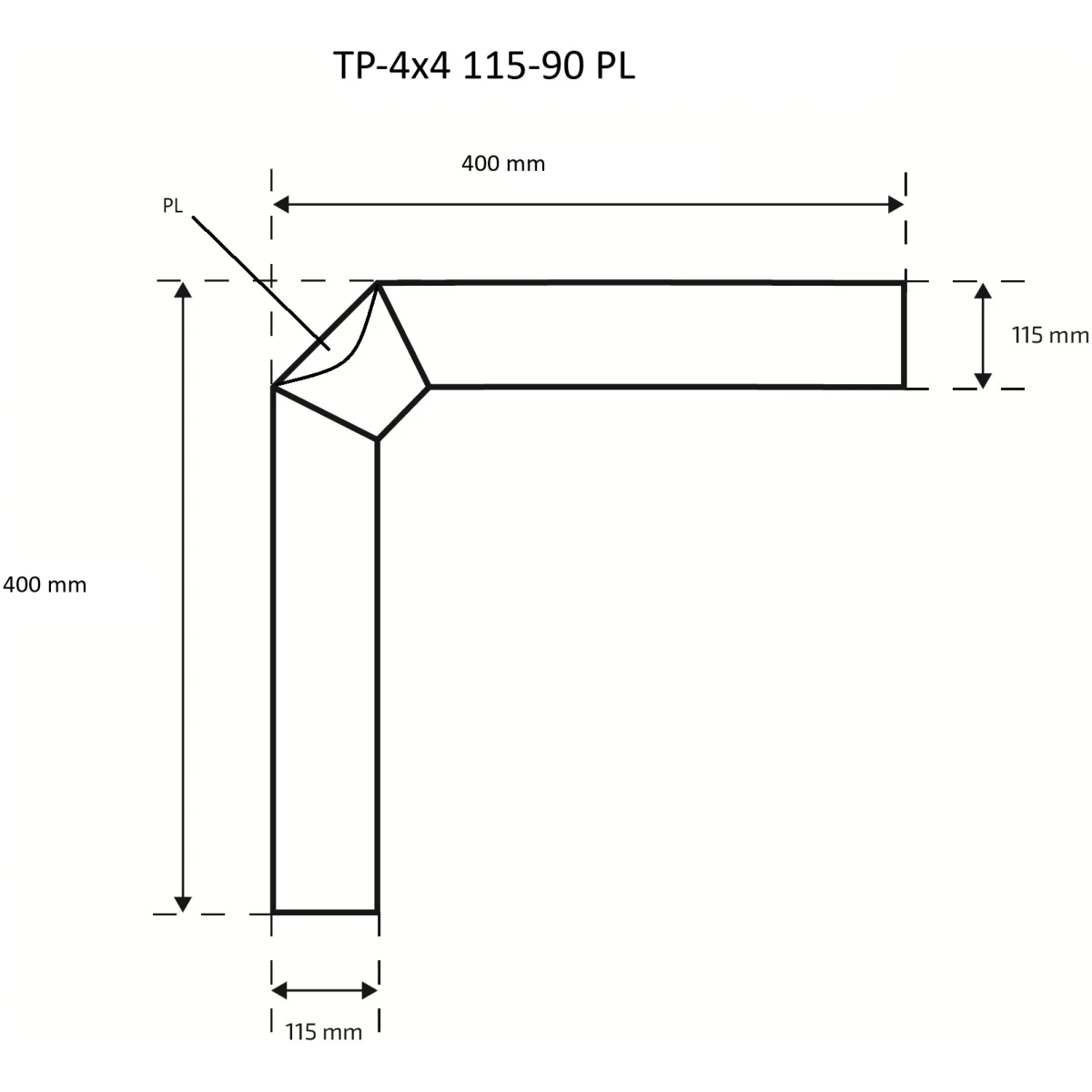

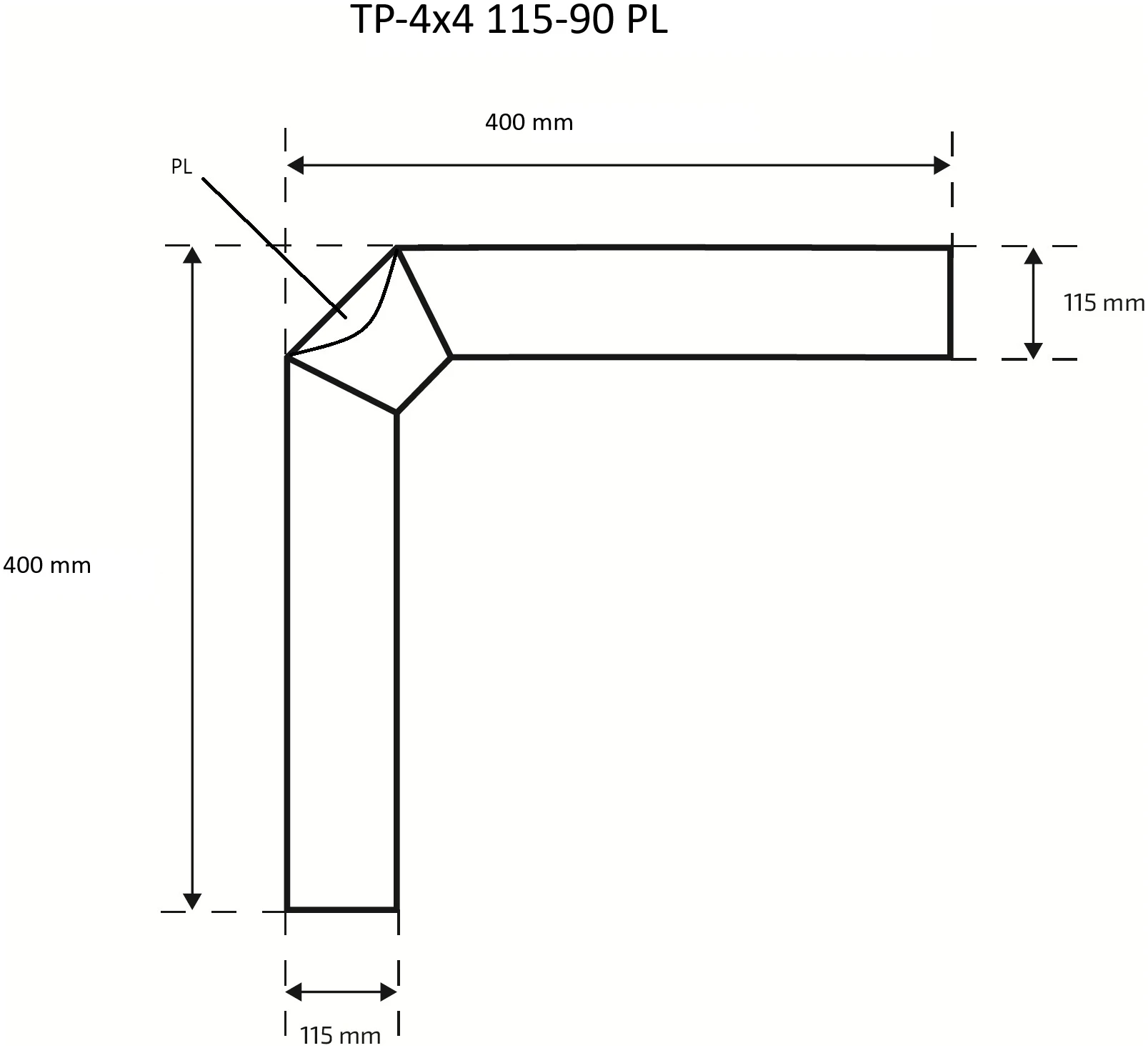

TP-4x4 115-90 PL	Ø 115 mm 400 x 400 mm – 90 kraadi, puhastusluugiga

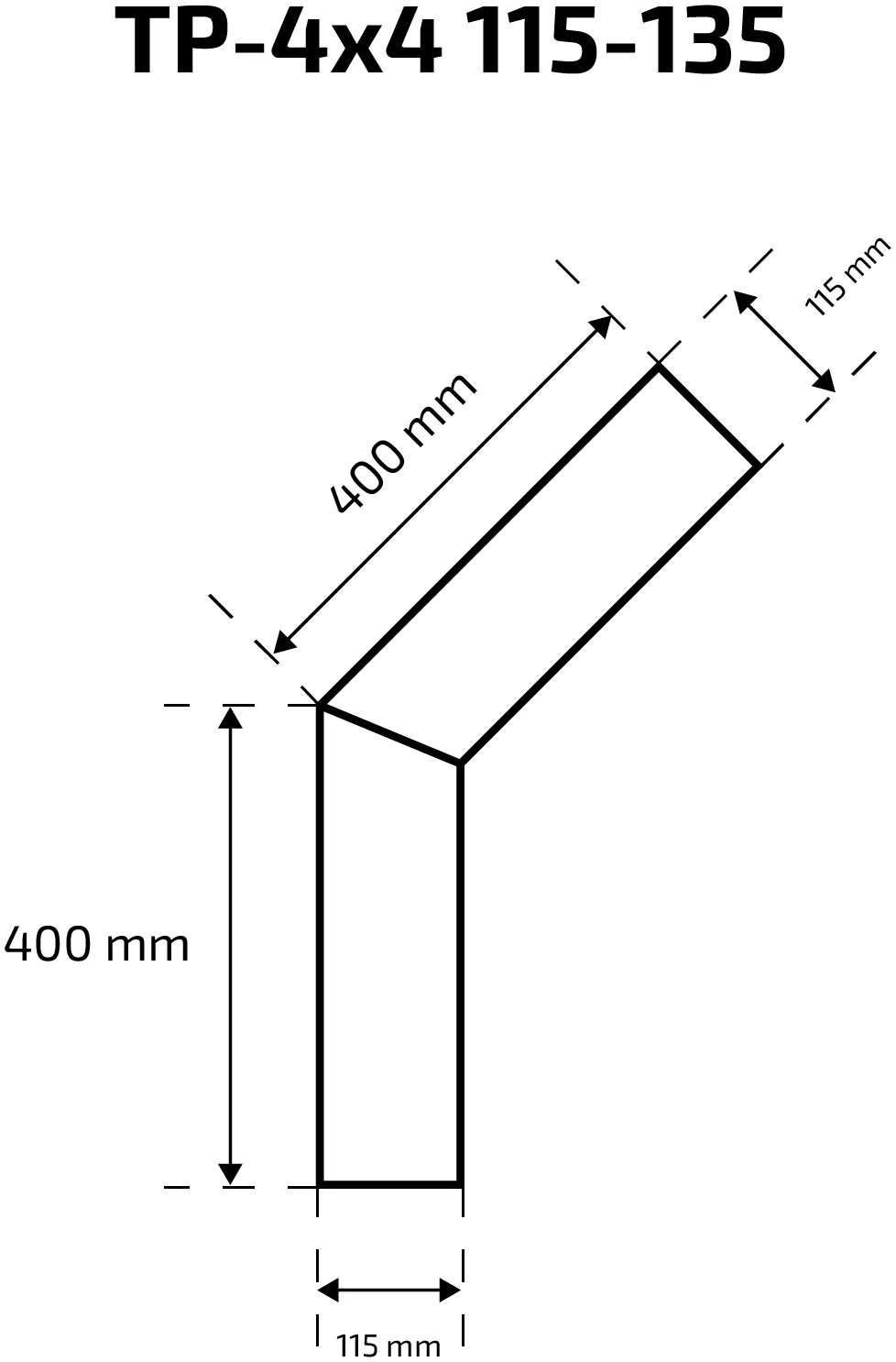

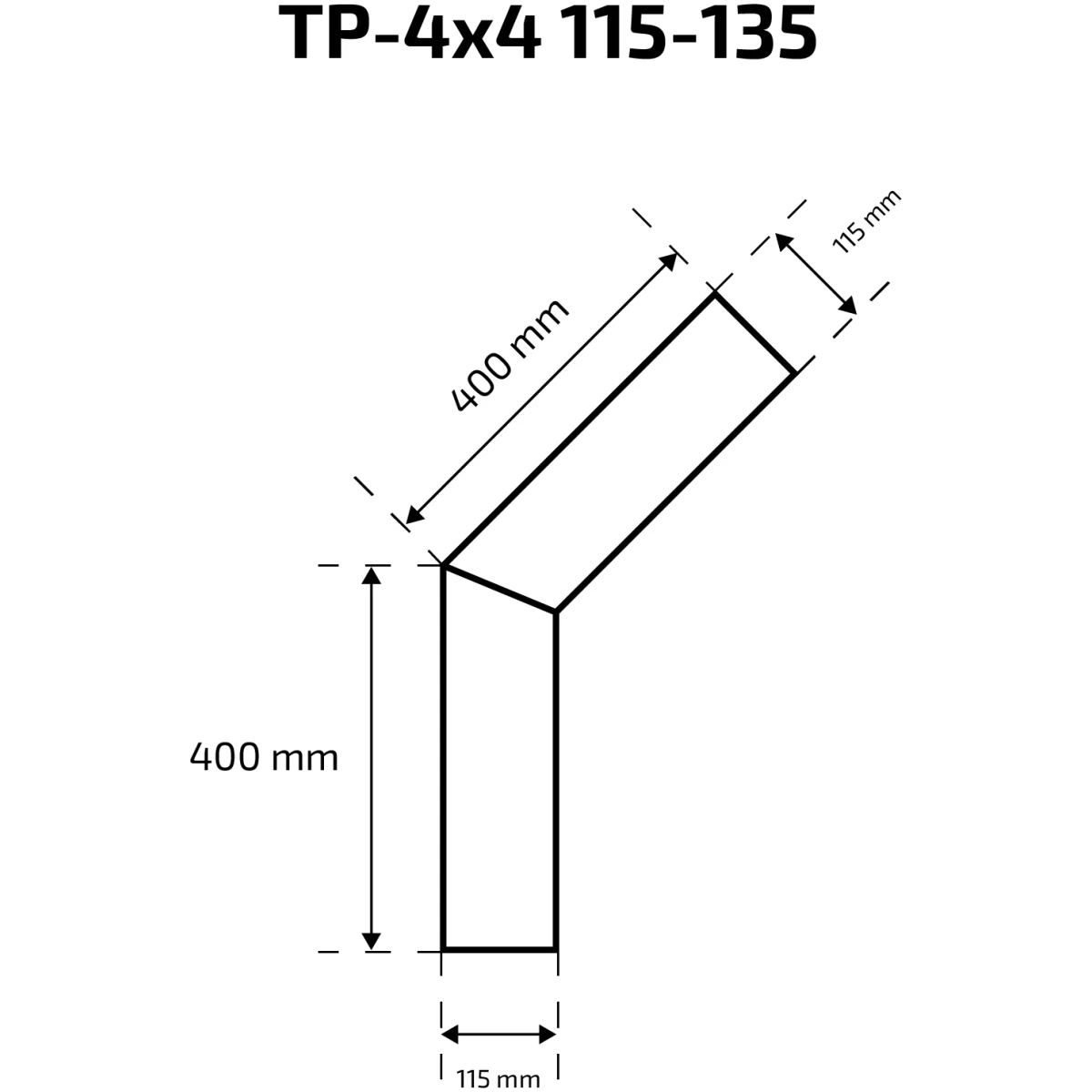

TP-4x4 115-135	Ø 115 mm 400 x 400 mm – 135 kraadi

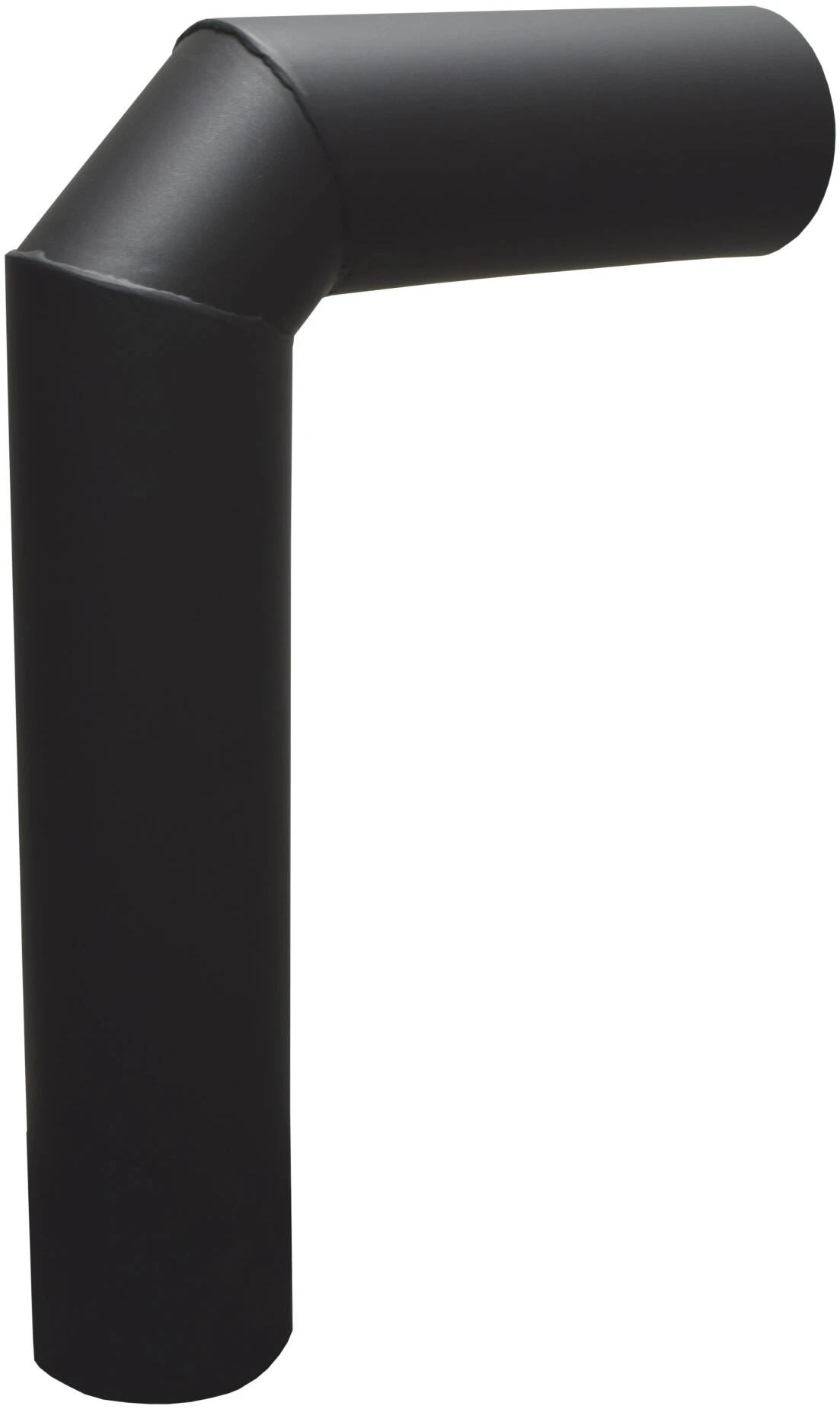

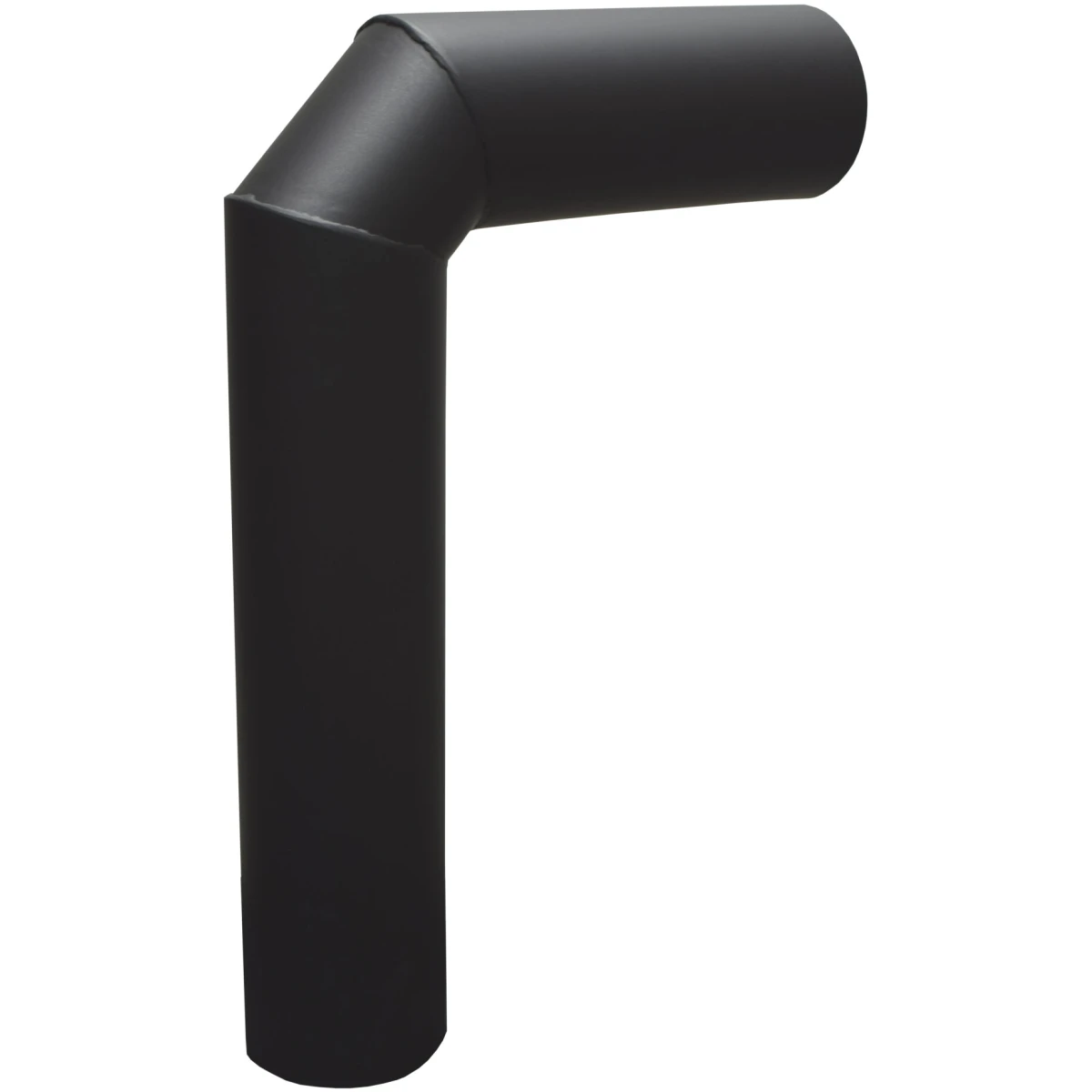

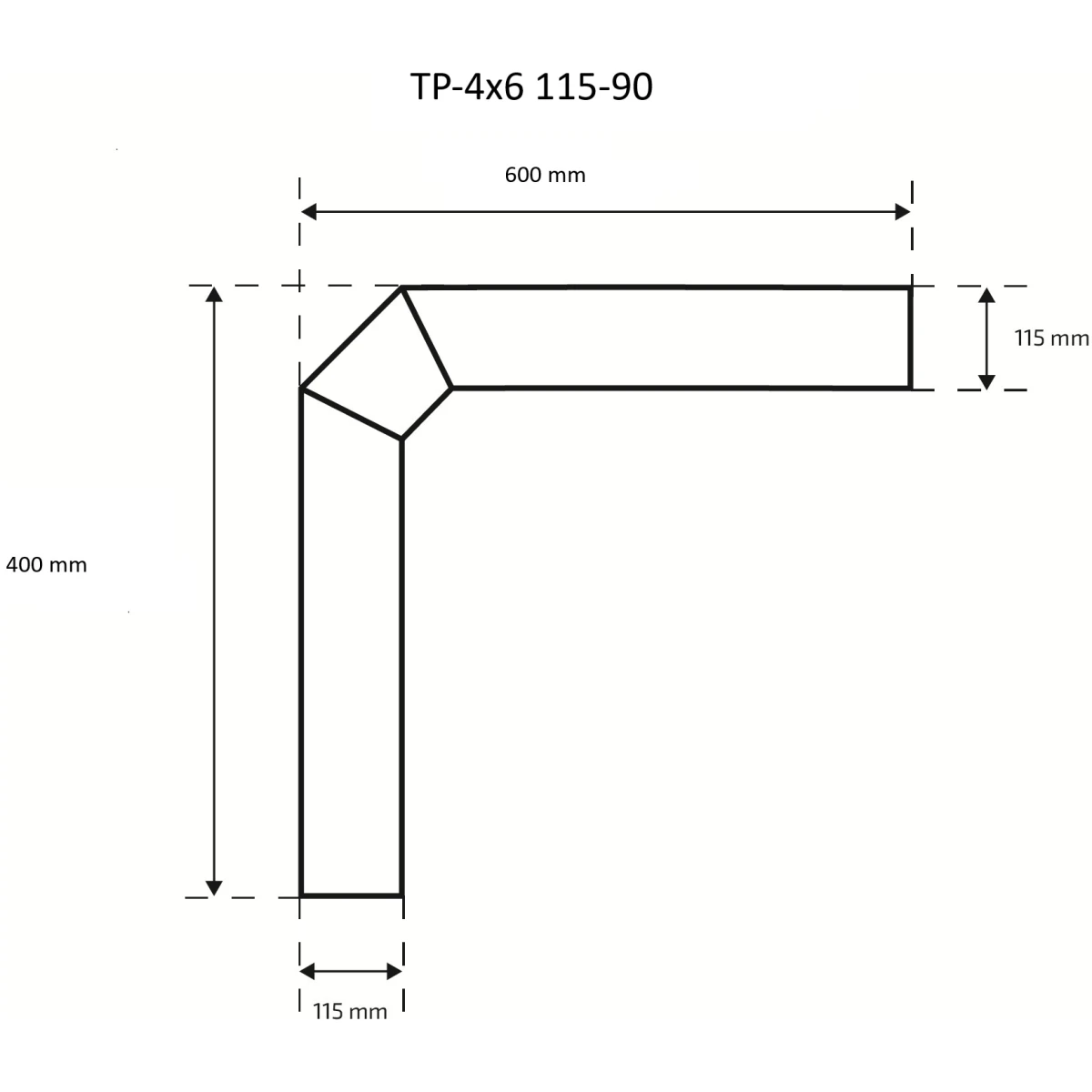

TP-4x6 115-90	Ø 115 mm 400 x 600 mm – 90 kraadi

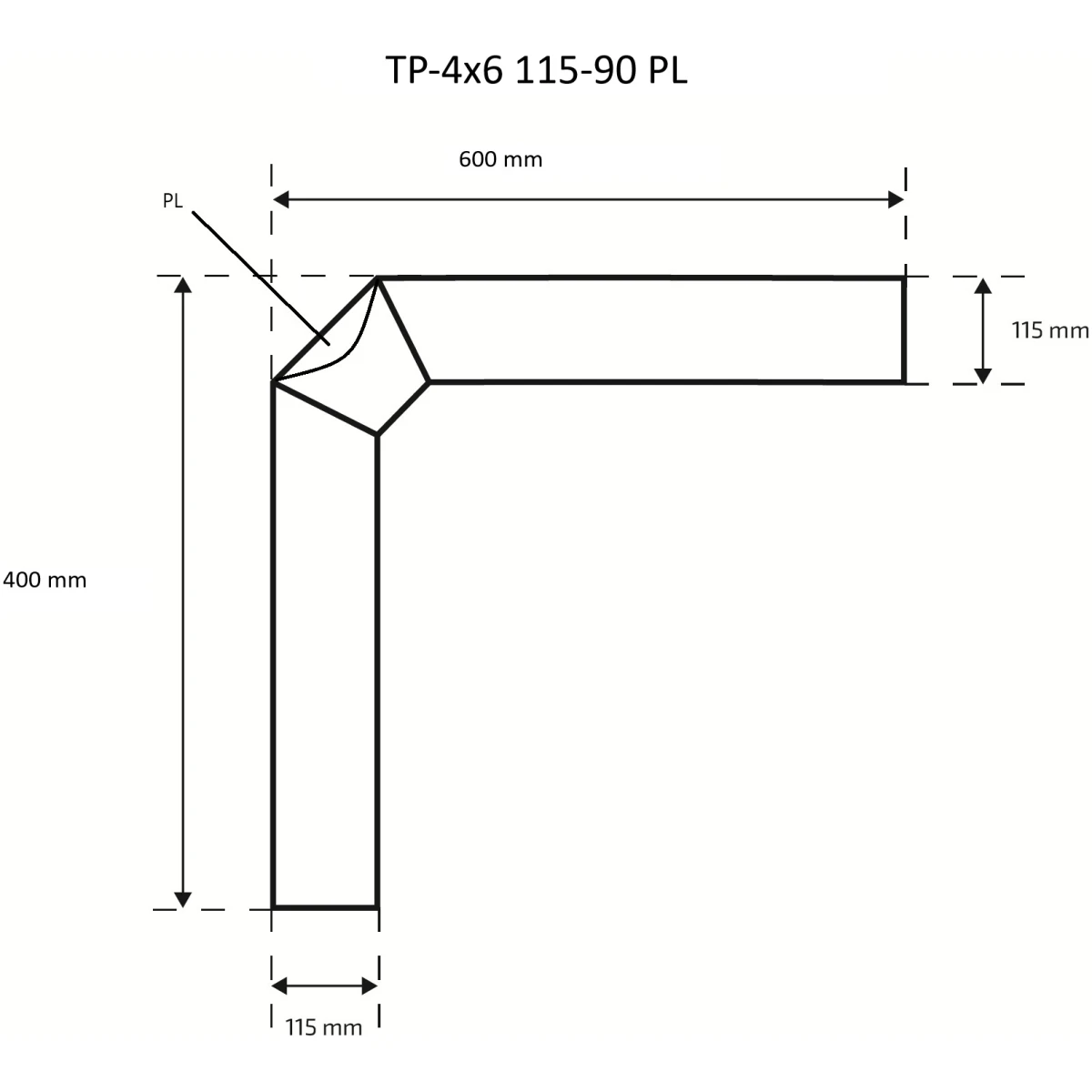

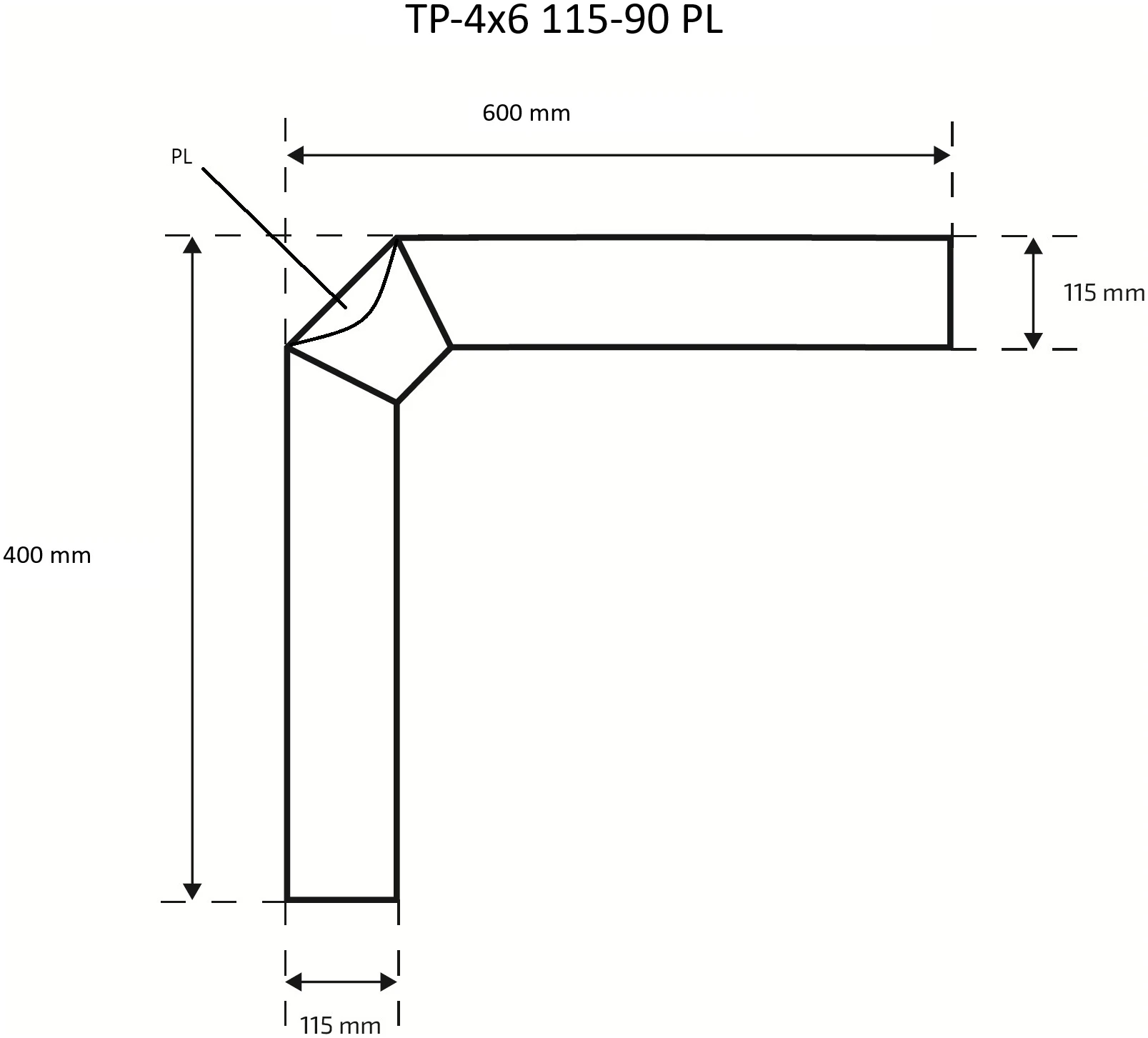

TP-4x6 115-90 PL	Ø 115 mm 400 x 600 mm – 90 kraadi, puhastusluugiga

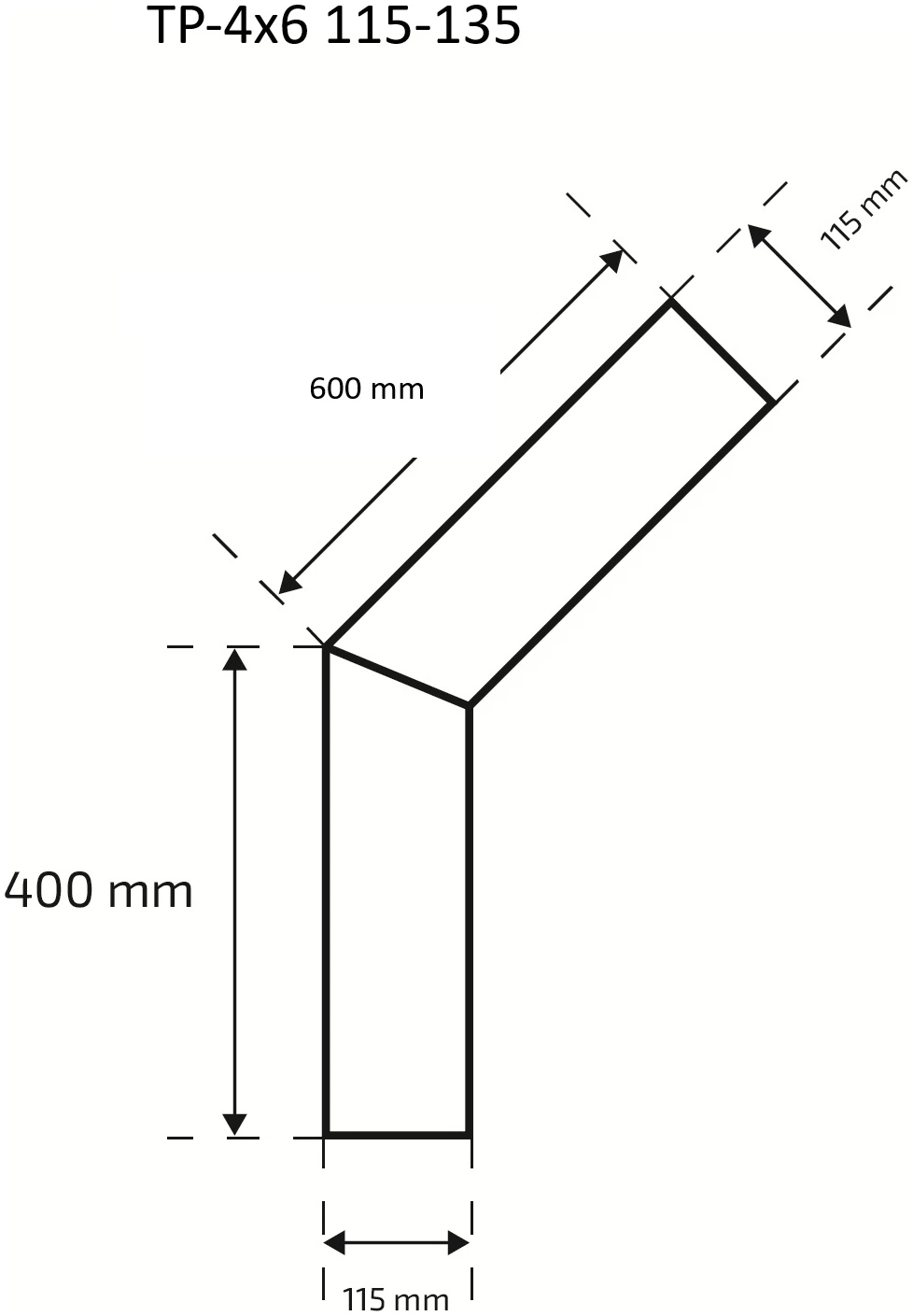

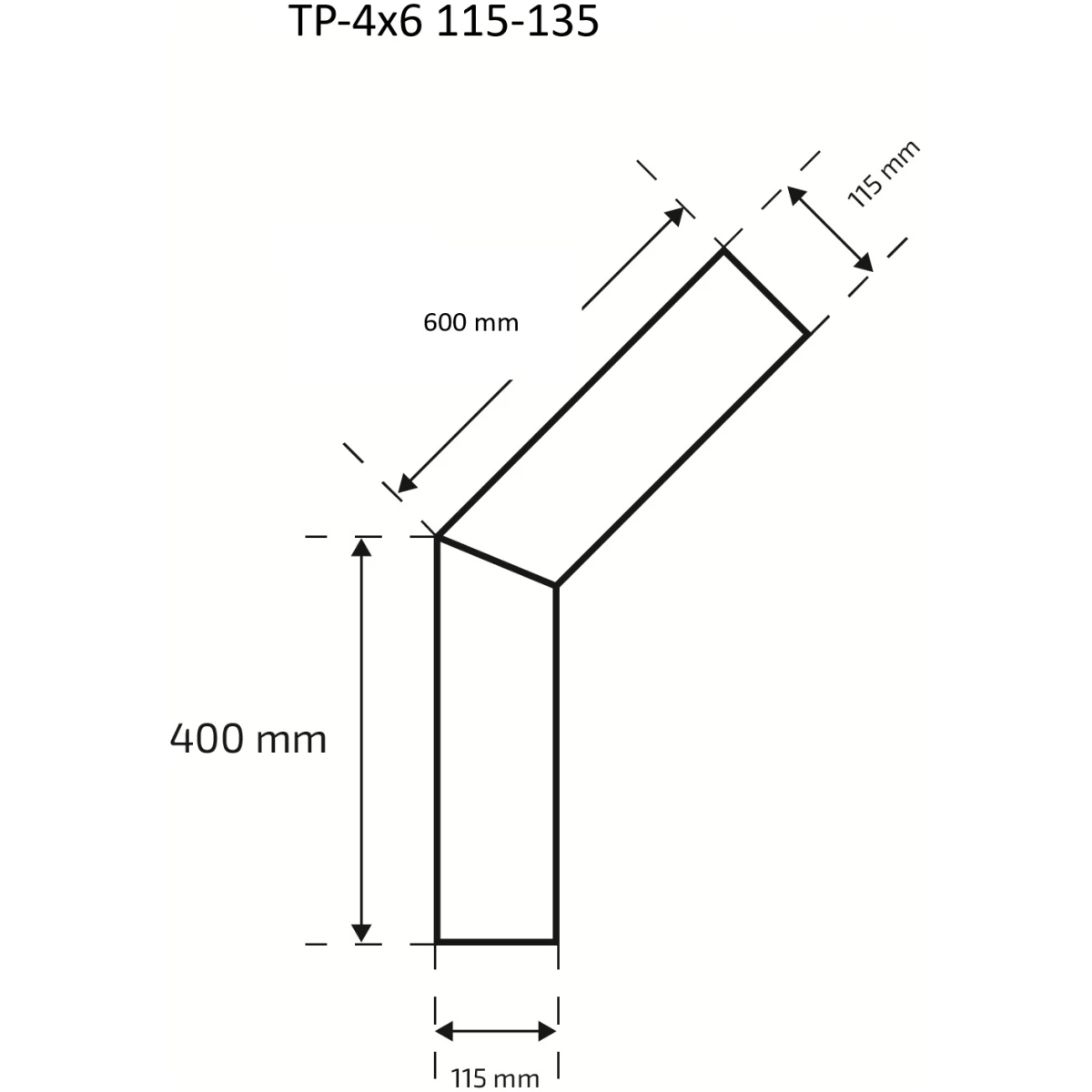

TP-4x6 115-135	Ø 115 mm 400 x 600 mm – 135 kraadi

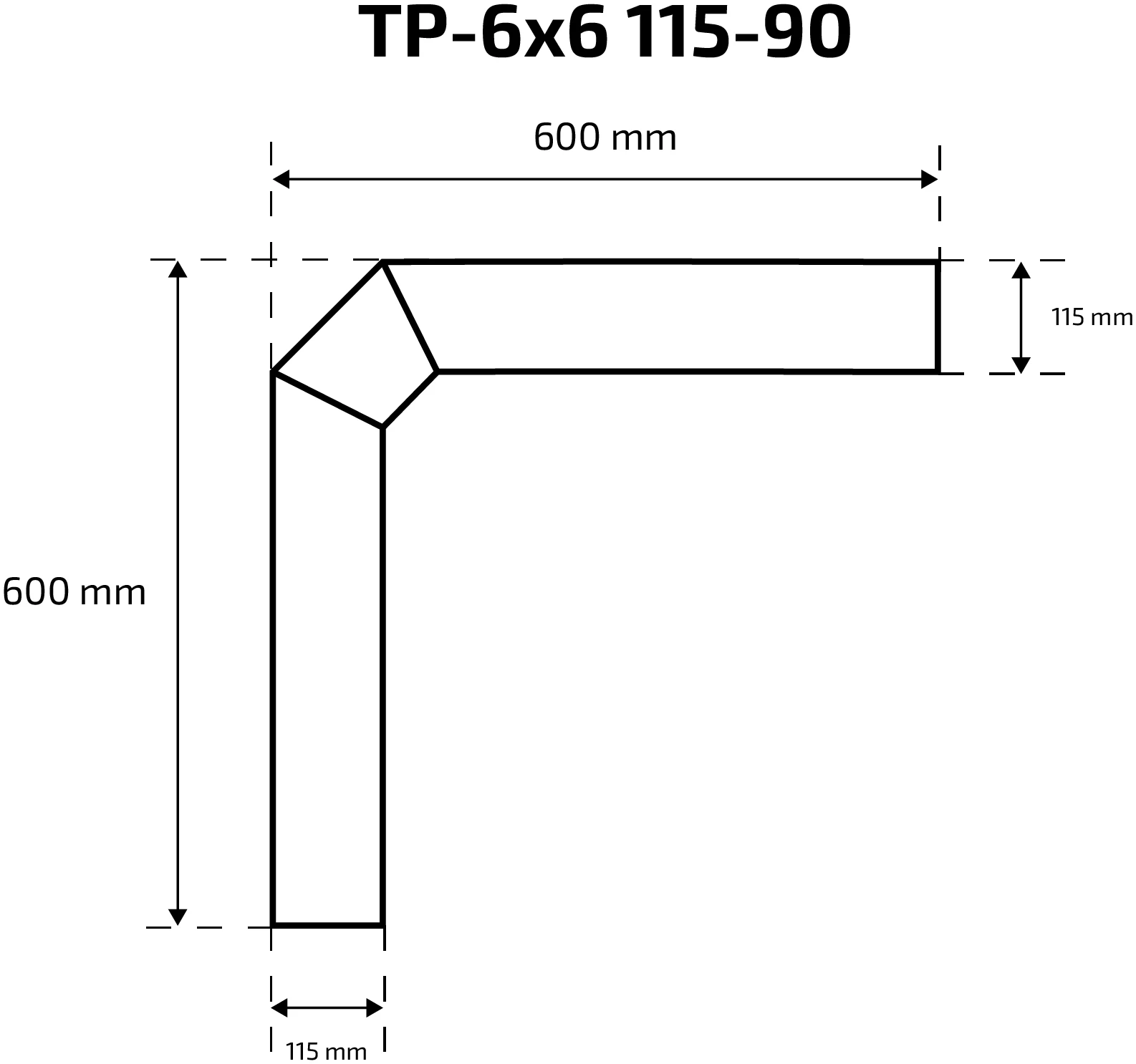

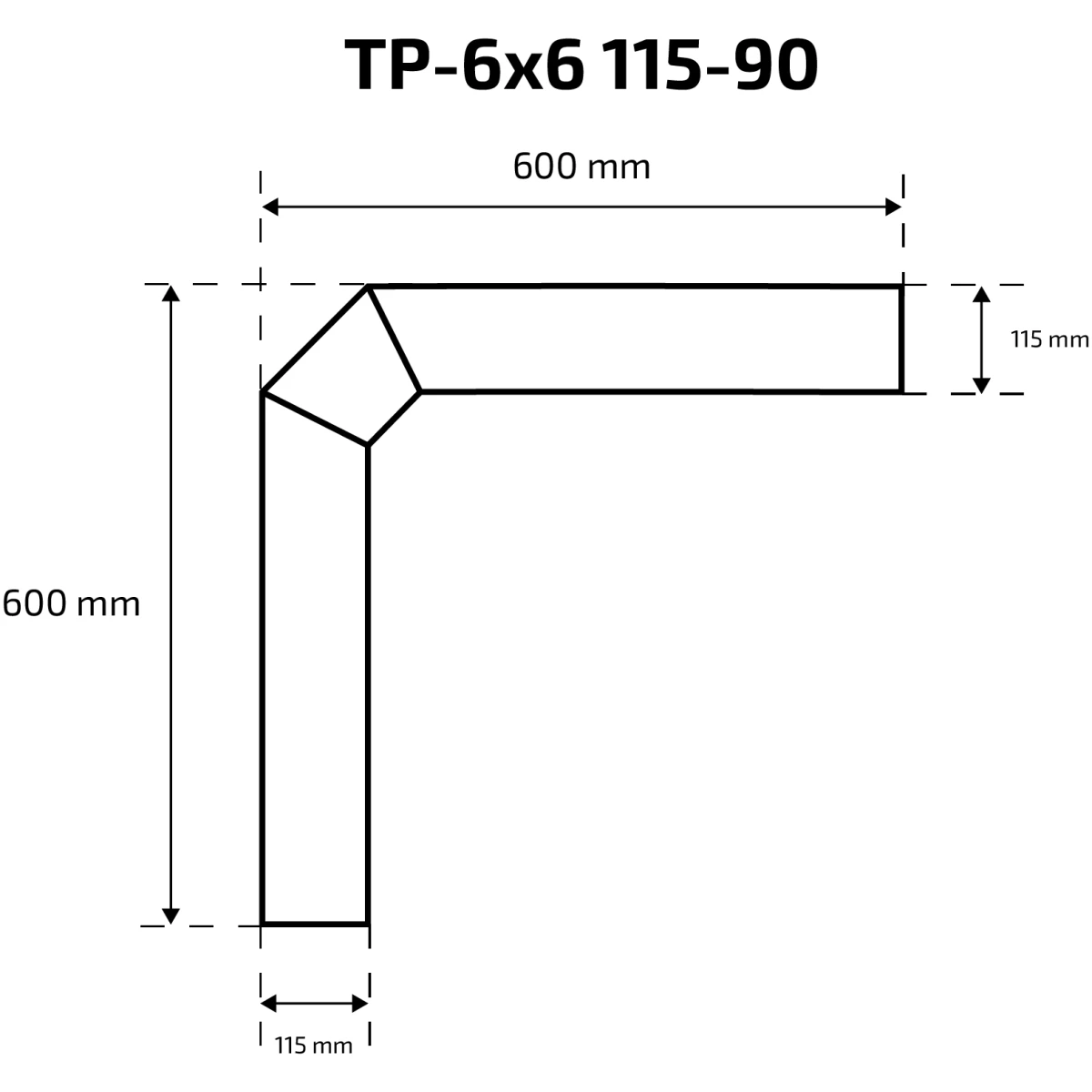

TP-6x6 115-90	Ø 115 mm 600 x 600 mm – 90 kraadi

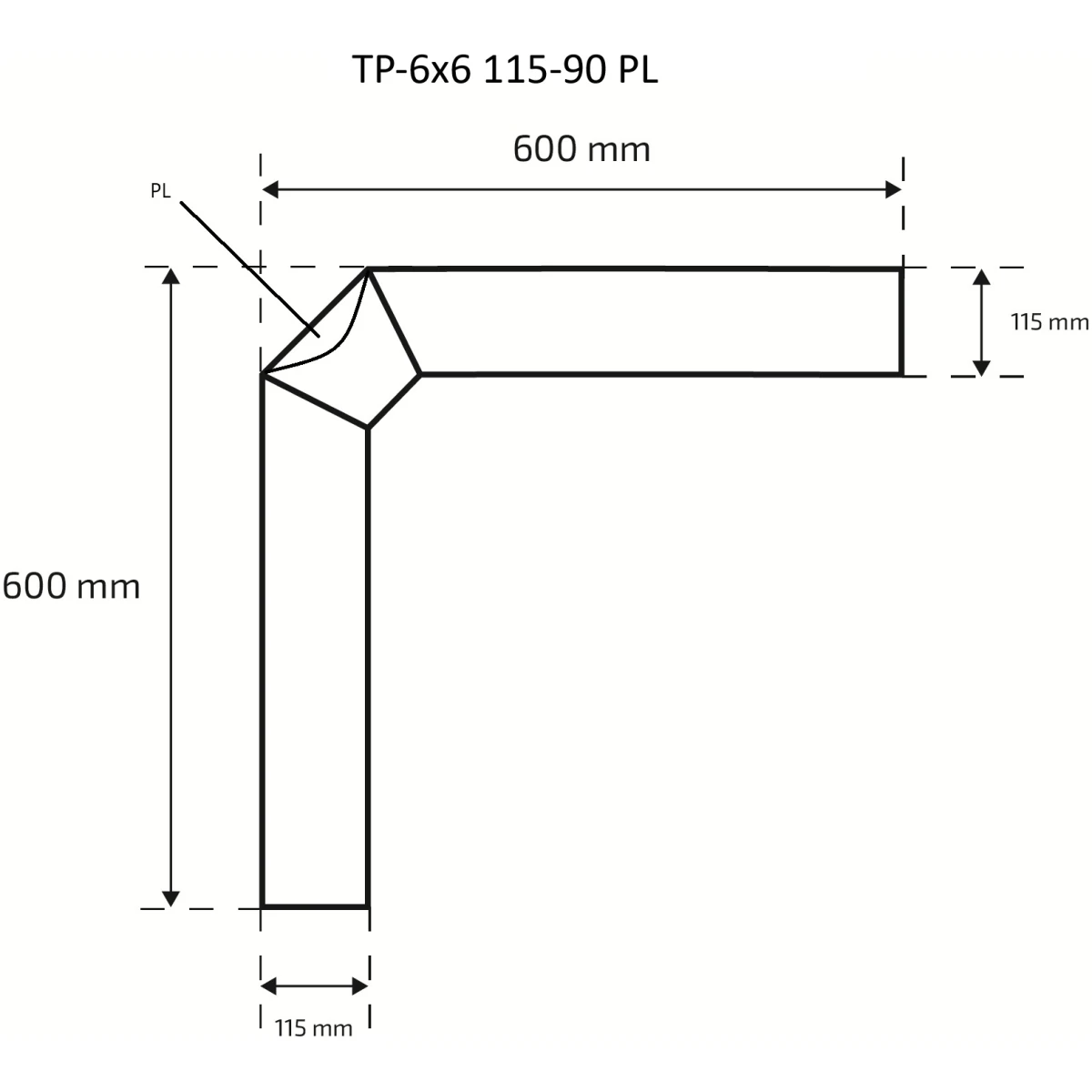

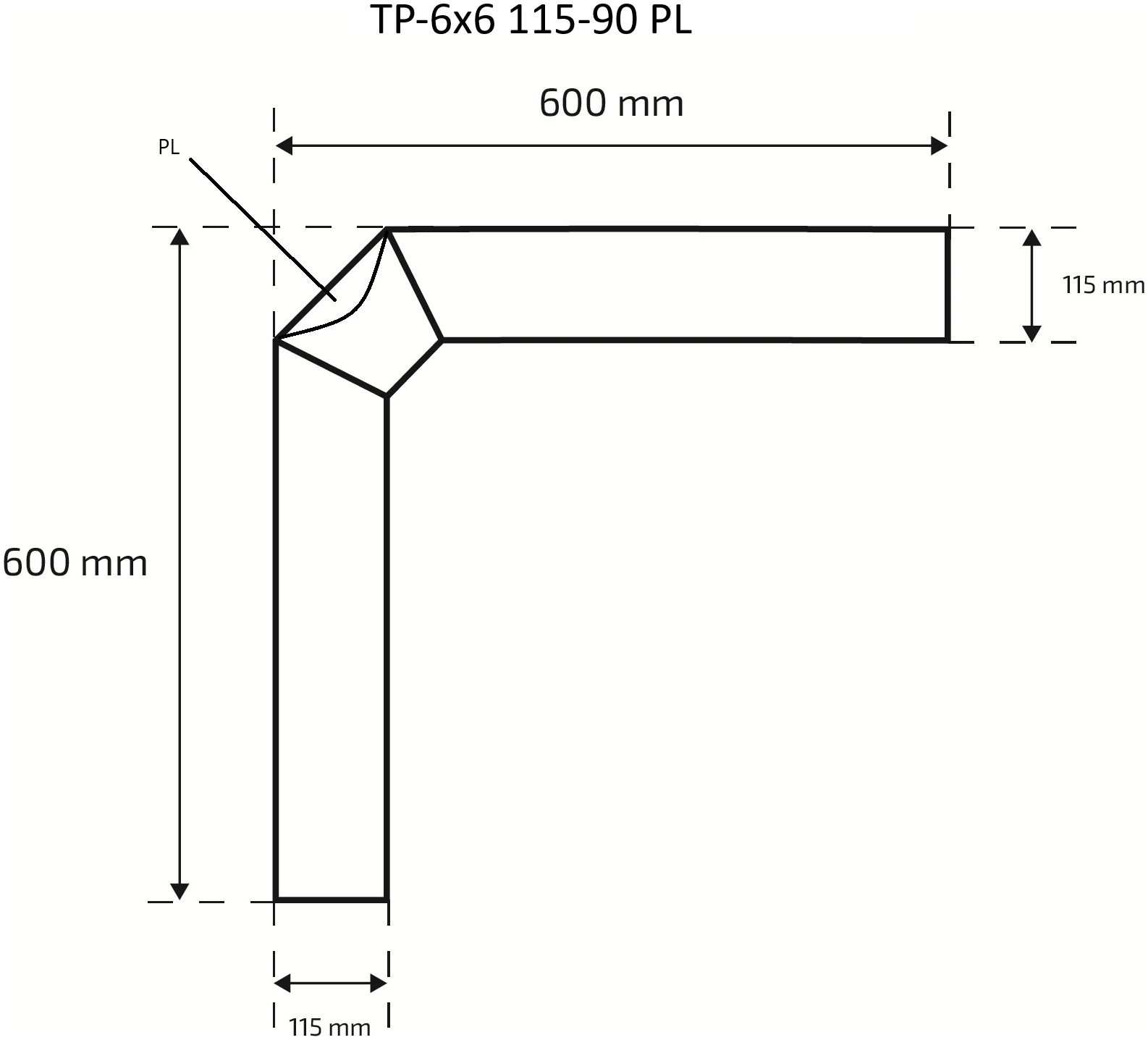

TP-6x6 115-90 PL	Ø 115 mm 600 x 600 mm – 90 kraadi, puhastusluugiga

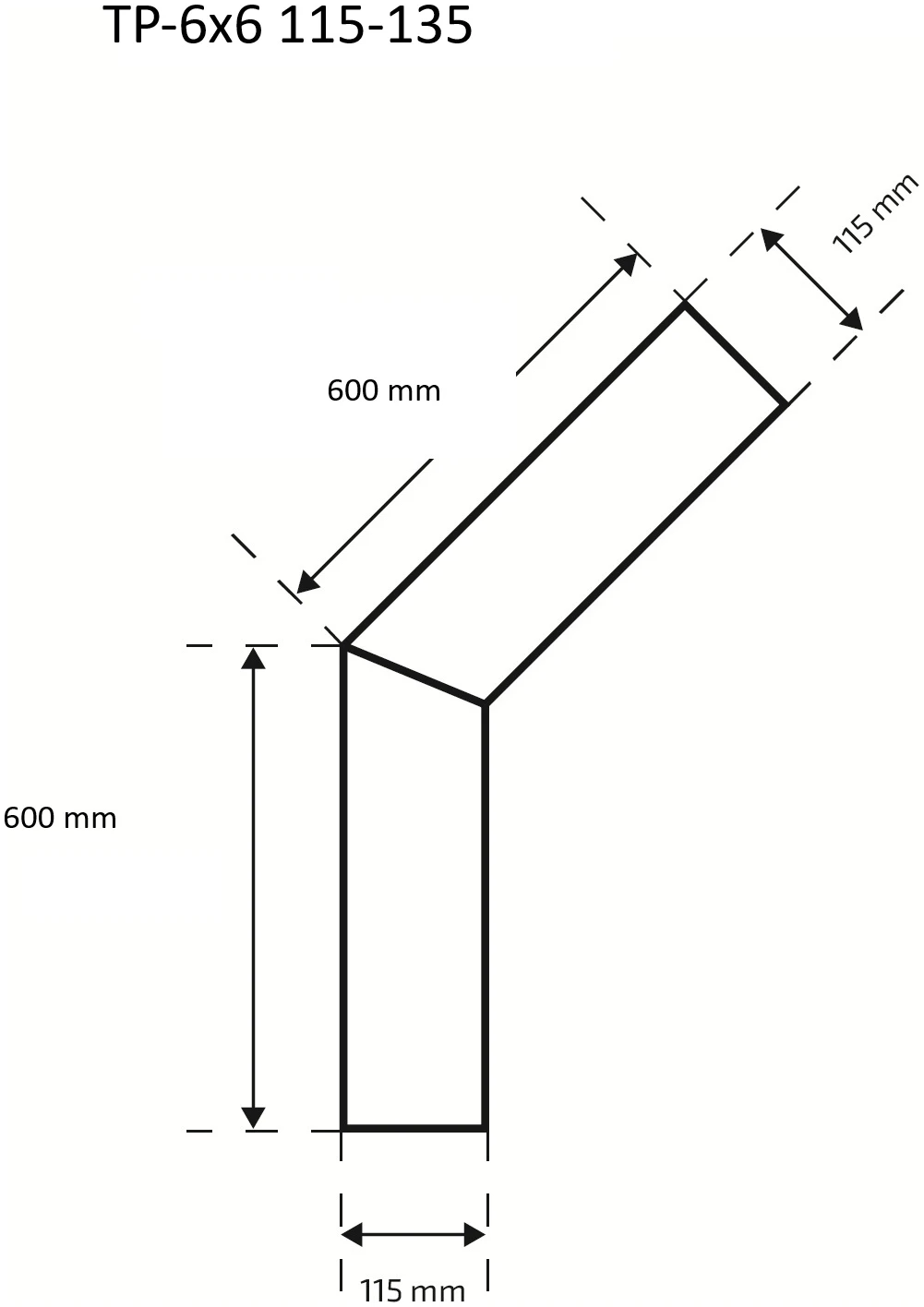

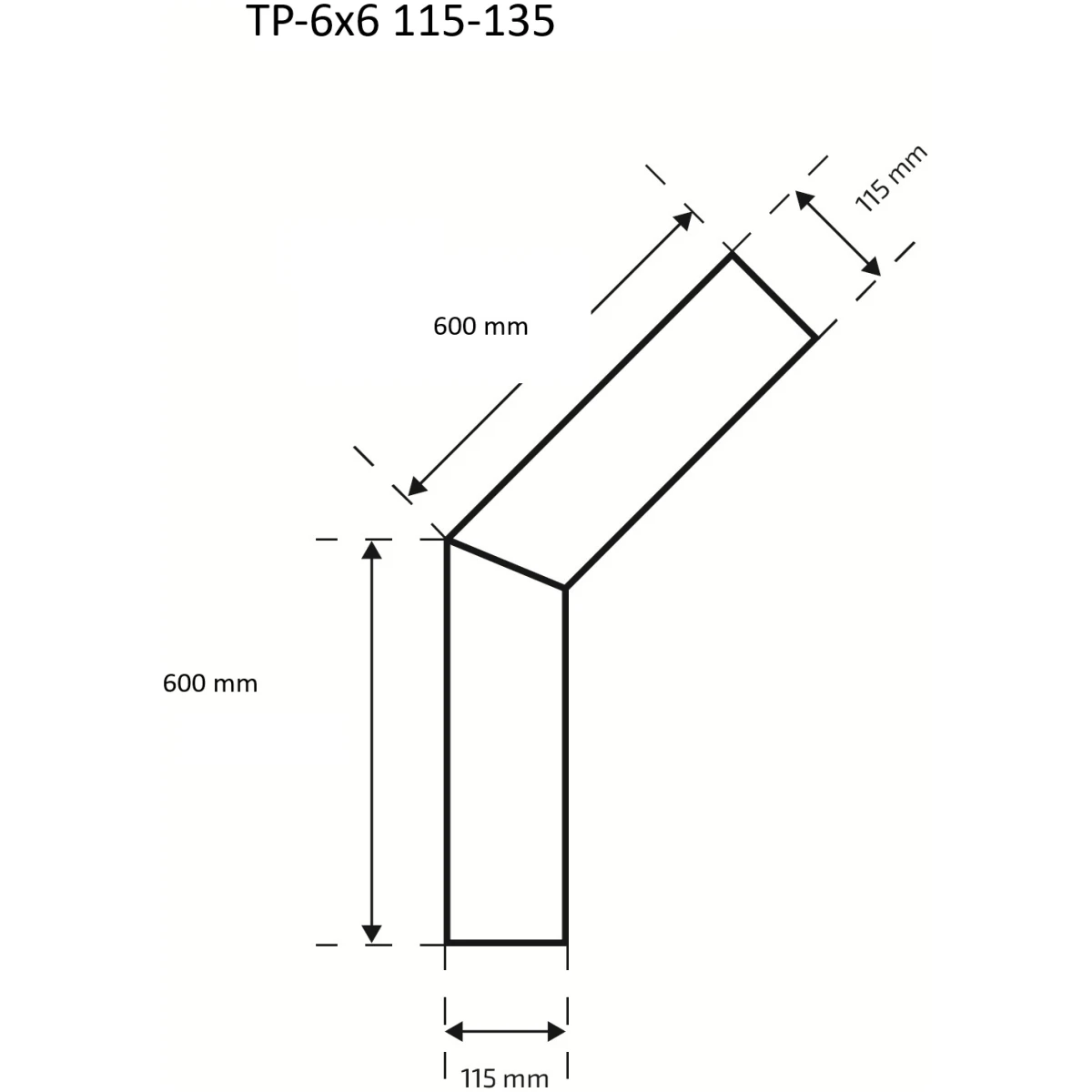

TP-6x6 115-135	Ø 115 mm 600 x 600 mm – 135 kraadi

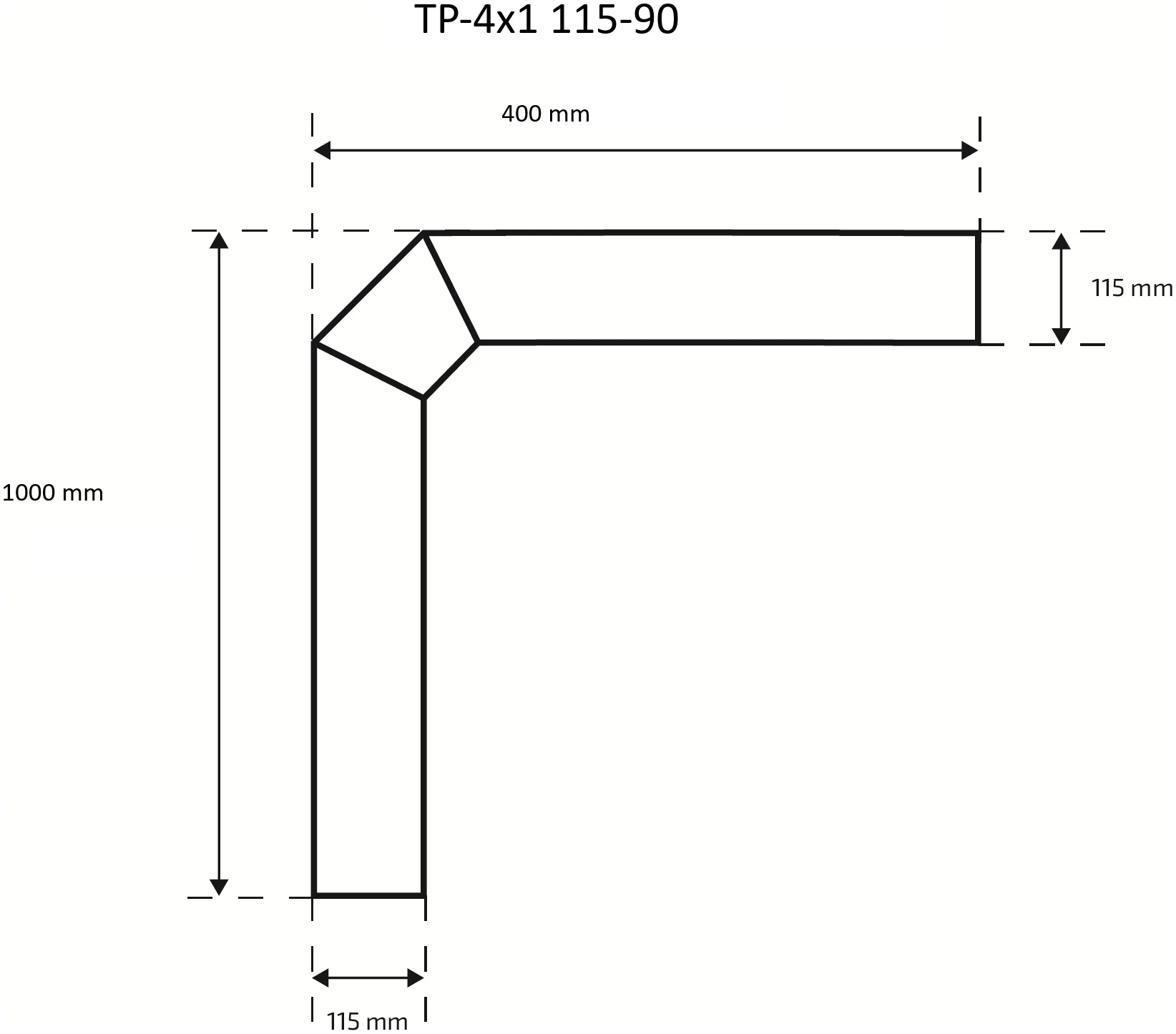

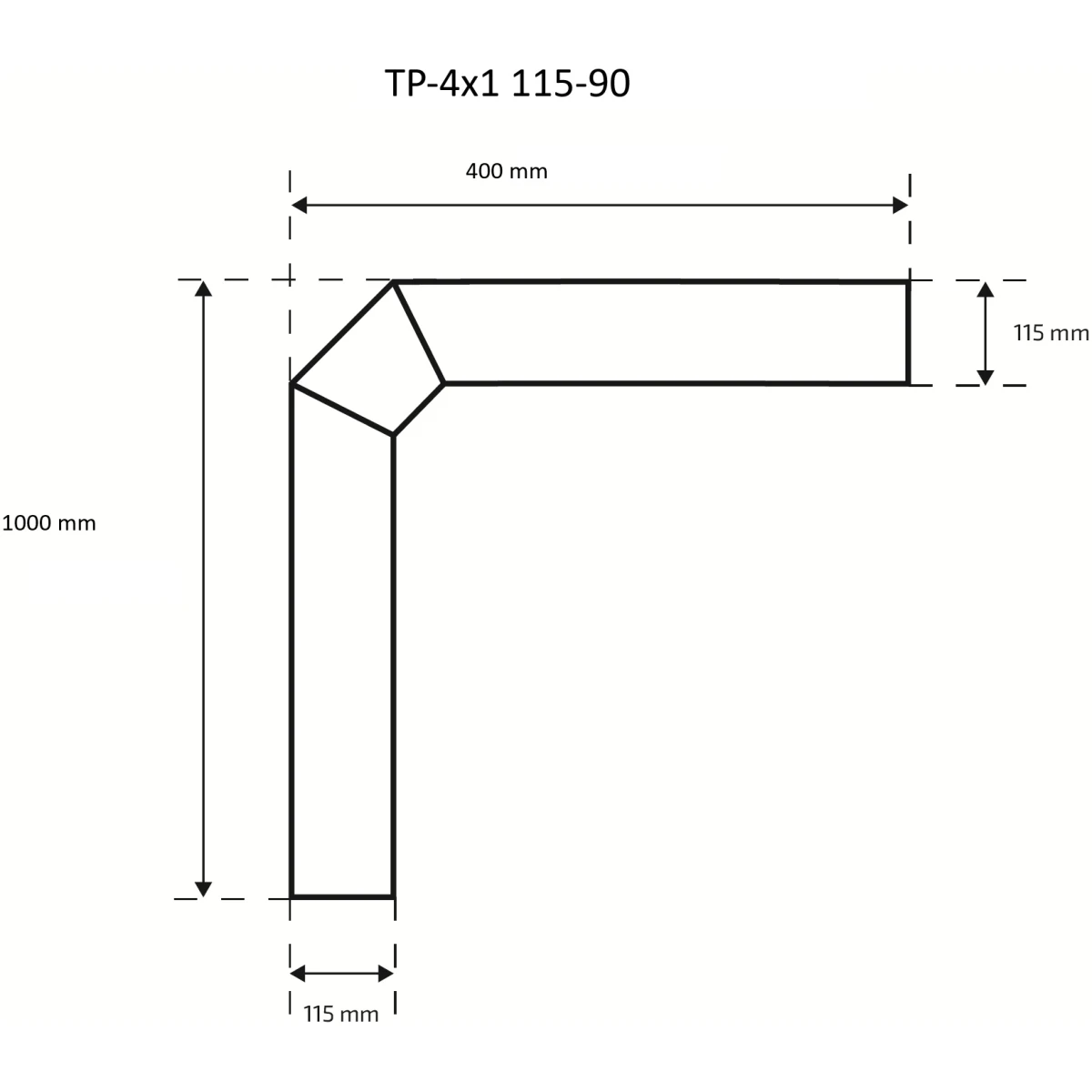

TP-4x1 115-90	Ø 115 mm 400 x 1000 mm – 90 kraadi

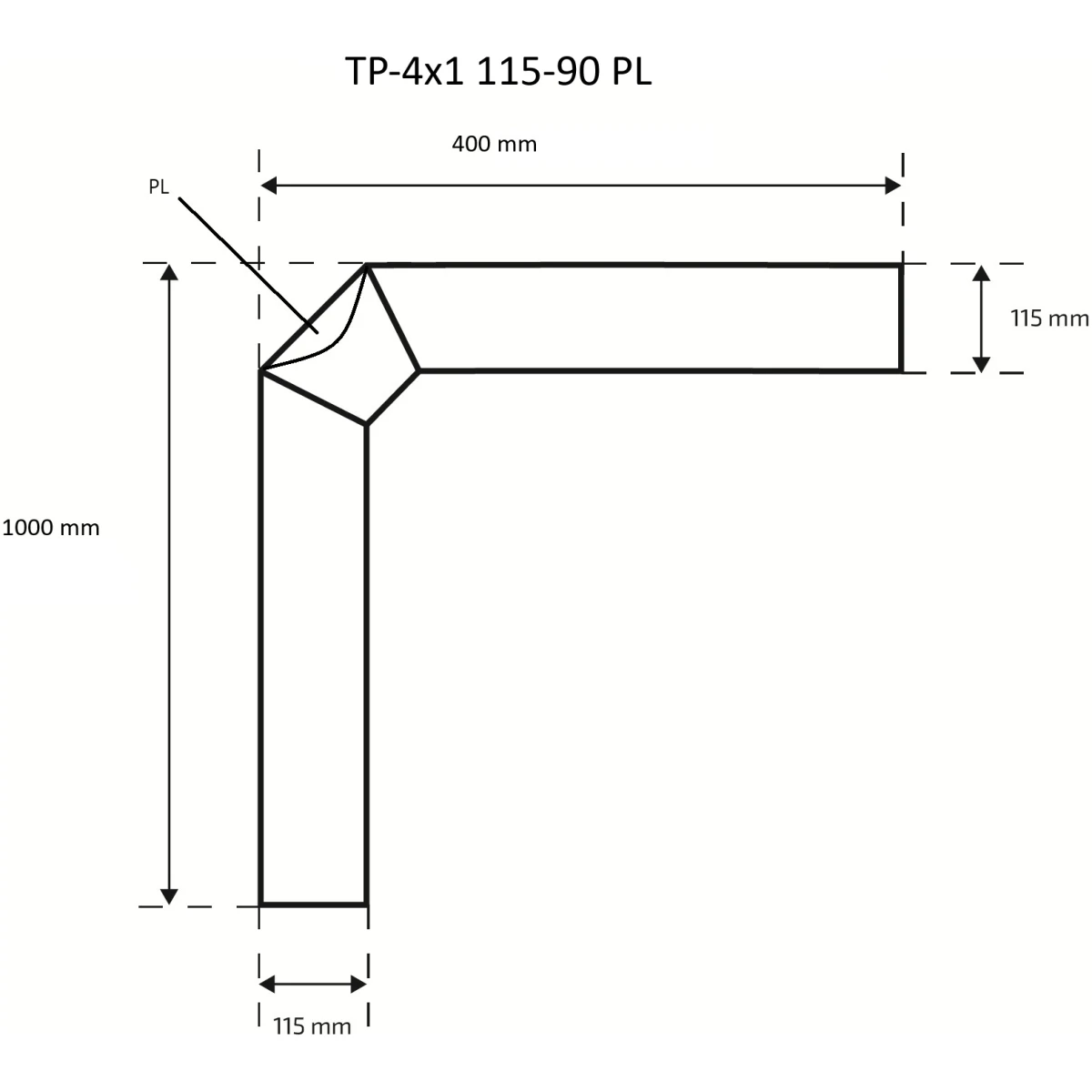

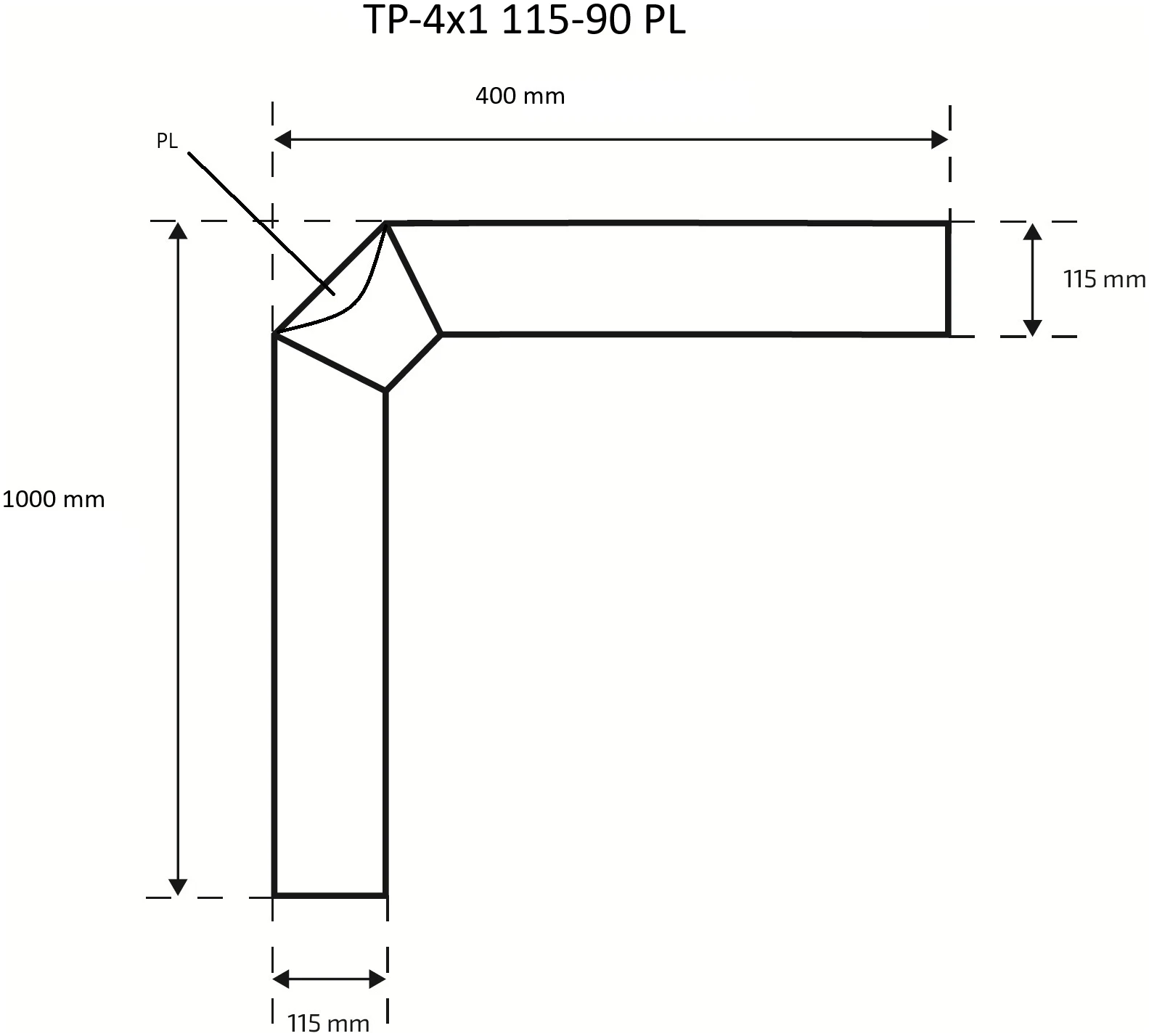

TP-4x1 115-90 PL	Ø 115 mm 400 x 1000 mm – 90 kraadi, puhastusluugiga

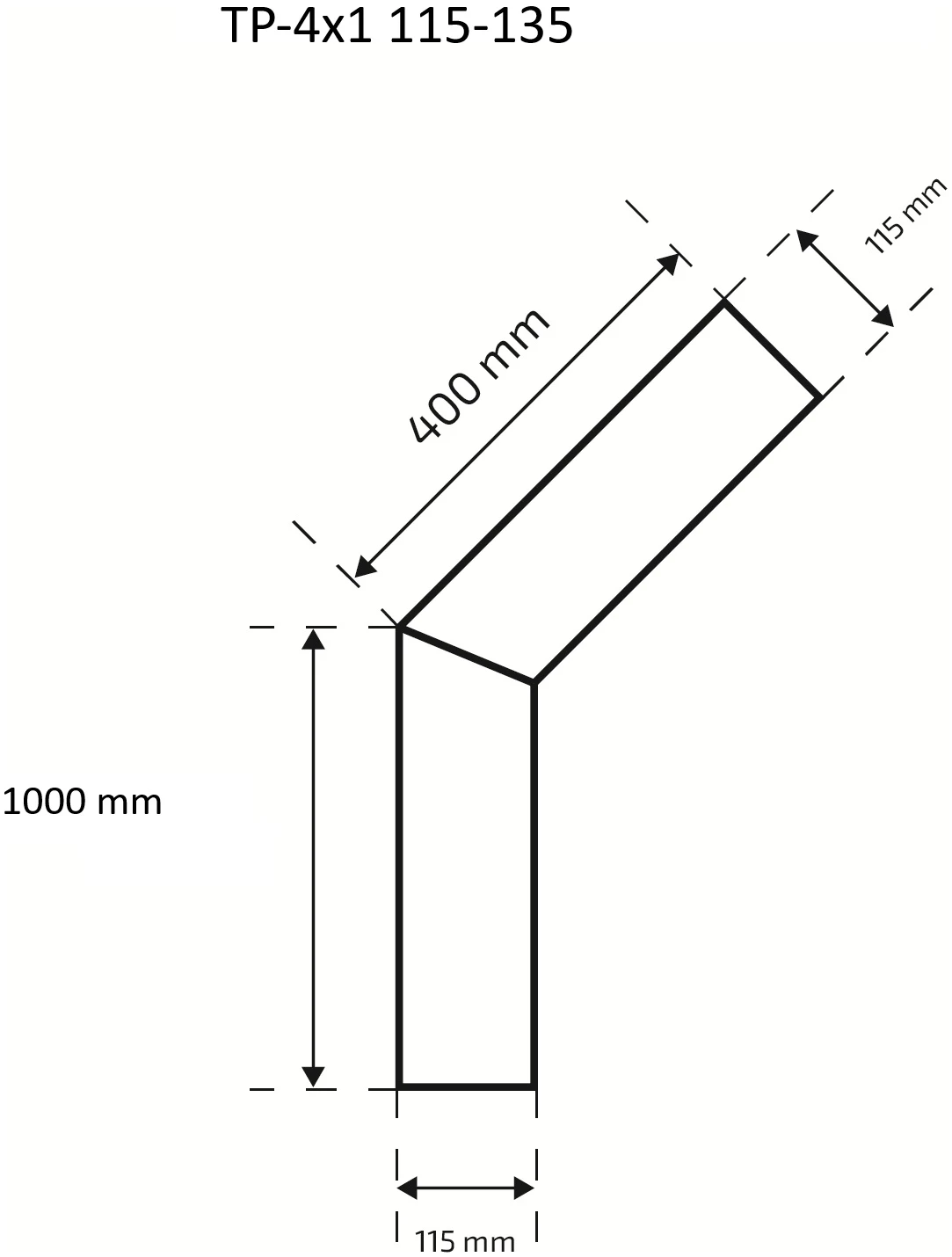

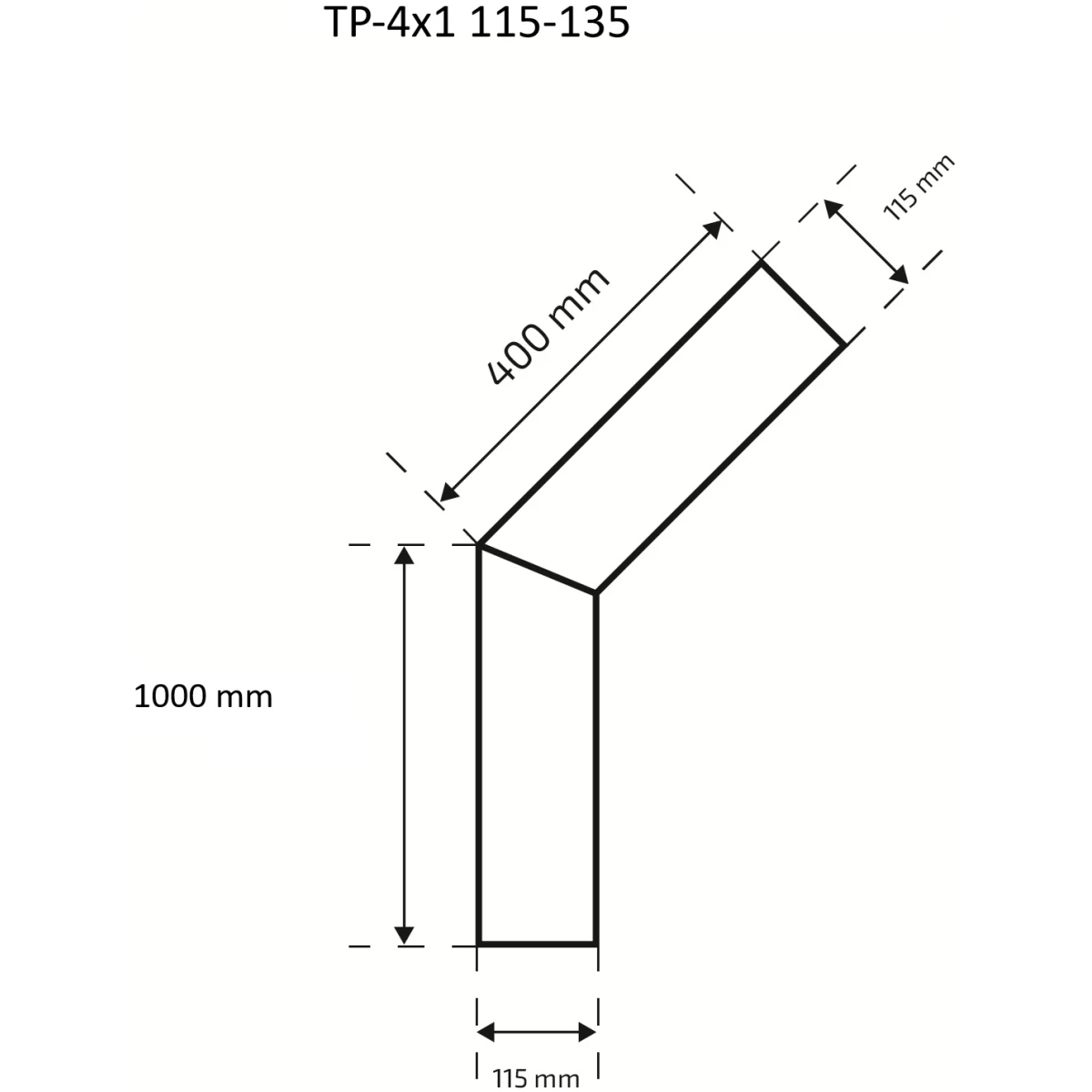

TP-4x1 115-135	Ø 115 mm 400 x 1000 mm – 135 kraadi

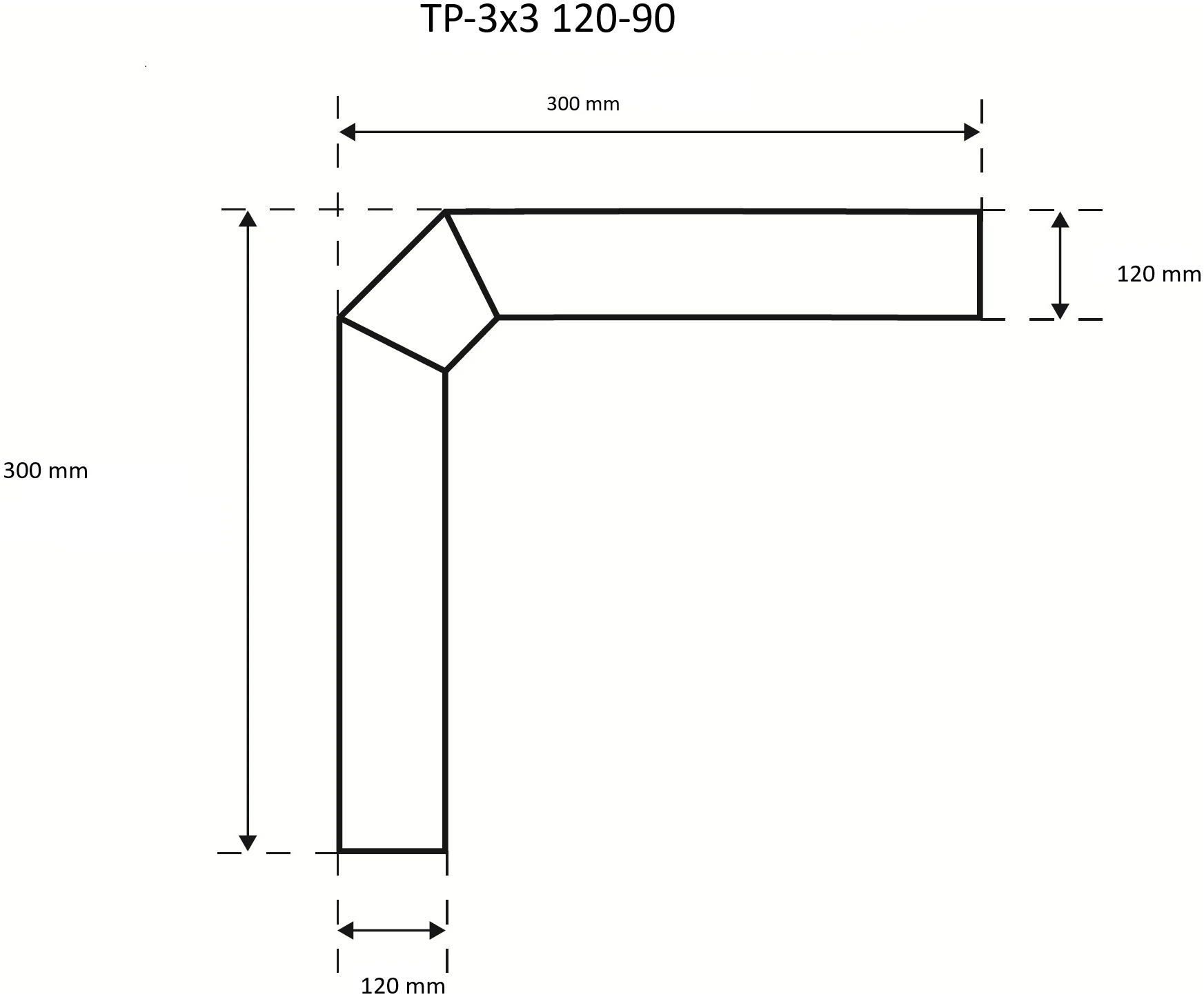

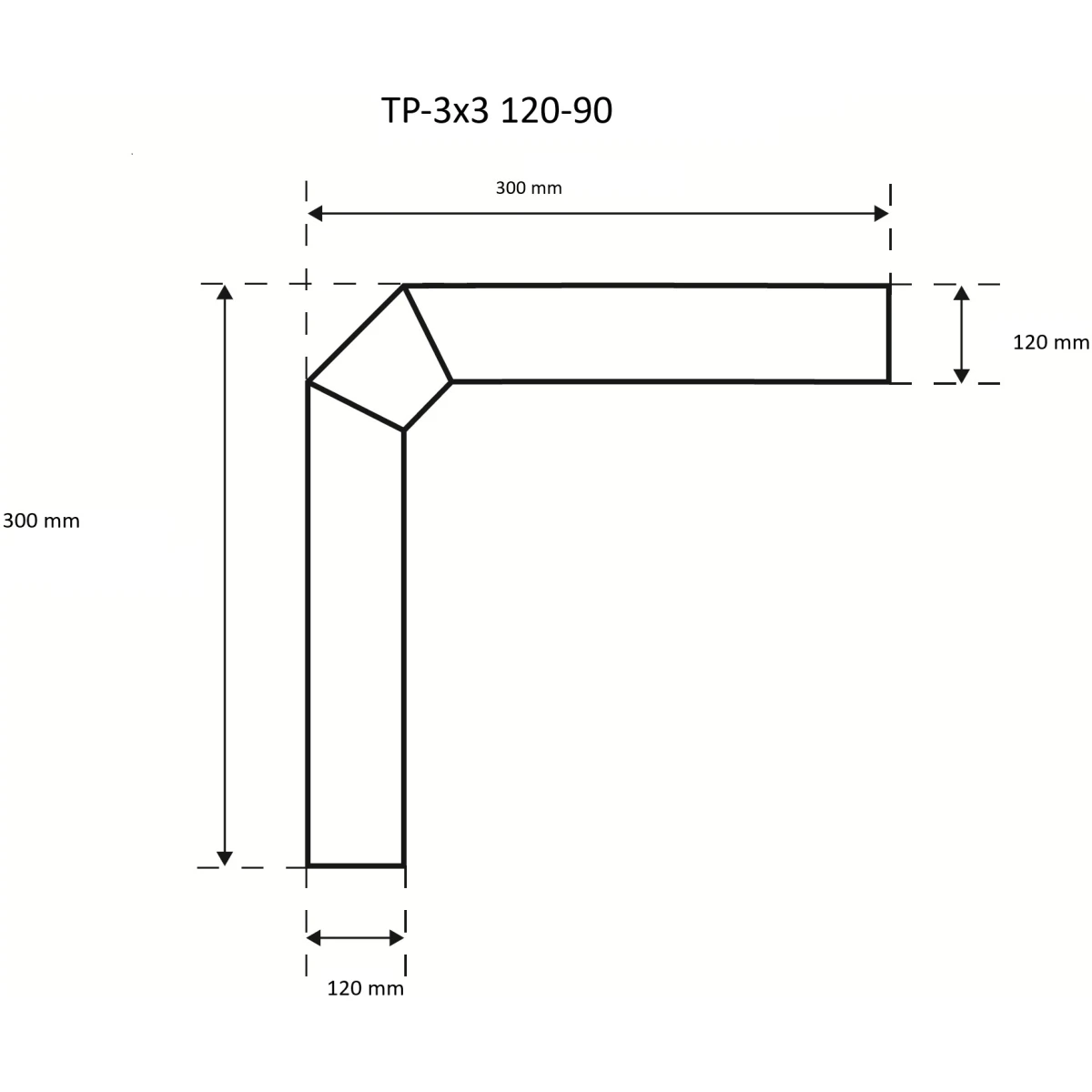

TP-3x3 120-90	Ø 120 mm 300 x 300 mm – 90 kraadi

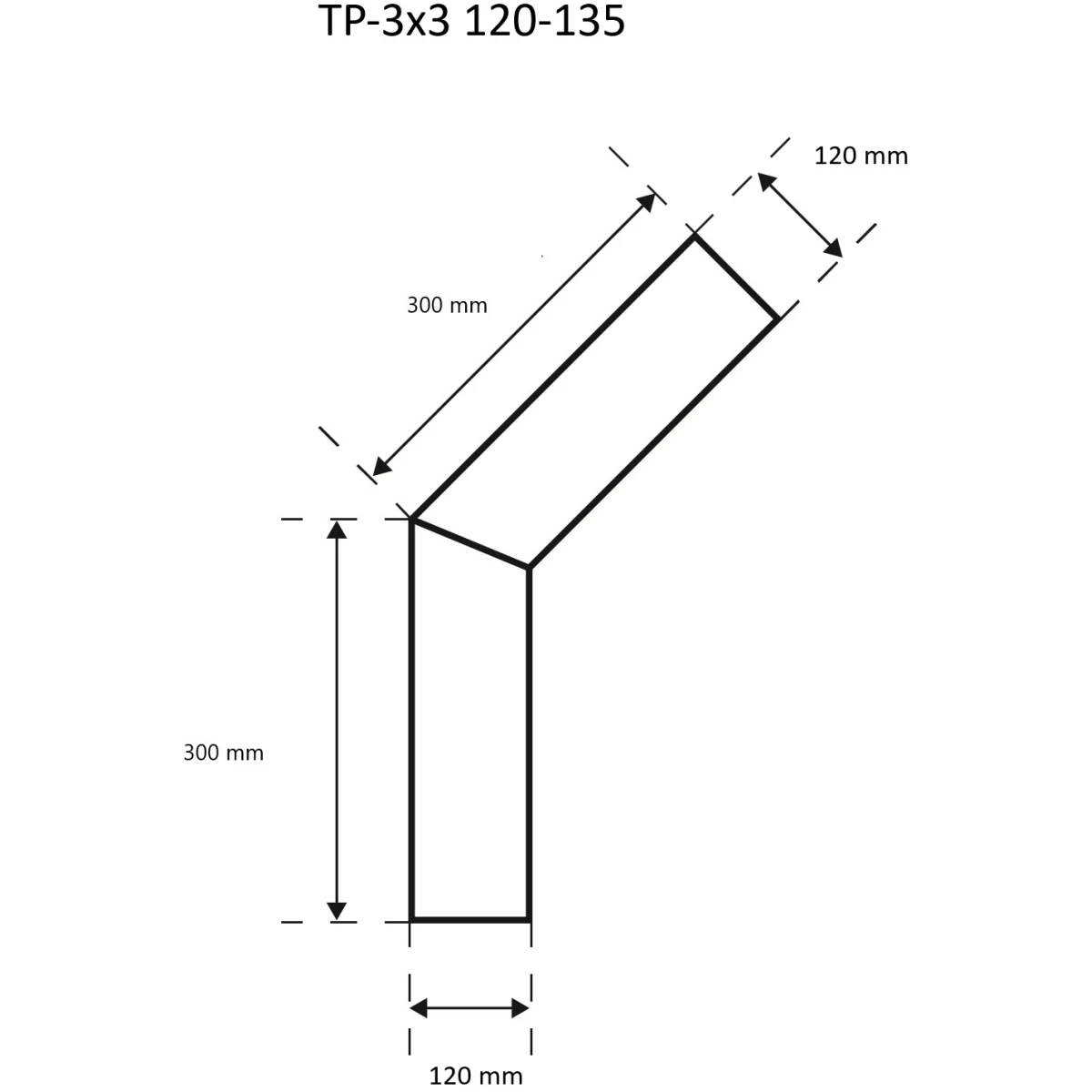

TP-3x3 120-135	Ø 120 mm 300 x 300 mm – 135 kraadi
